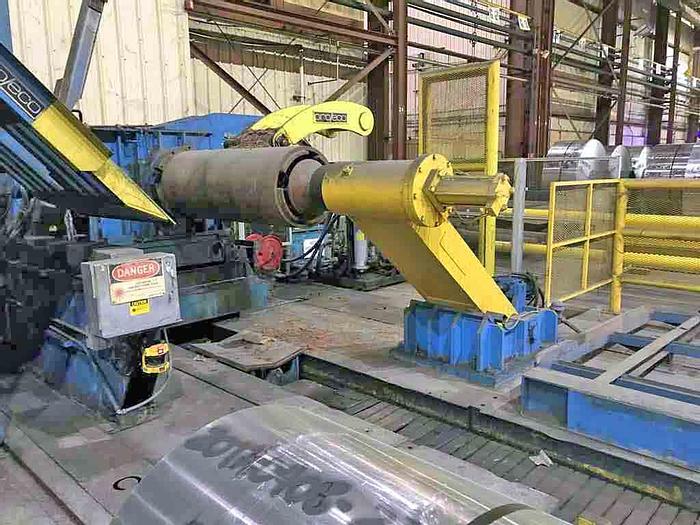

62" Pro Eco Aluminum Tension Leveling Line: TLL-204

62" Pro Eco Aluminum Tension Leveling Line: TLL-204

orCall +1 (336) 597-2370

Description

Manufacture:

  • Pro Eco - new 1984
  • New controls in 2007
  • Line shut down in 2009
  • No parts have been cannibalized - complete line!


Materials:

  • Aluminum Alloys


Strip Width:

  • Width before slit = Min: 29" / Max: 64.75"
  • Width after slit = Min: 28" / Max: 62.5"


Strip Thickness:

  • Min: 0.006" / Max: 0.063"


Line Speed:

  • 0 - 2,000 fpm constant


Entry Coil Size:

  • ID = 16, 20, 24" (16" = +1.25" / - 2.00")(20 & 24" = + 0.5" / - 5.5")
  • OD = Min: 36" / Max: 103"
  • Weight = Min: 2,448 lbs / Max: 50,000 lbs


Exit Coil Size:

  • ID = 16" & 24" (16" = + 0.0 / - 0.75") (24" = +/- 0.5")
  • OD = Min: 36" / Max: 103"
  • Weight = Min: 2,448 lbs / Max: 50,000 lbs


Width Tolerances: (1/2 of commercial tolerance (+/-) (STD Capability):

  • Over 24” thru 48” 0.02344”
  • Over 48” thru 60“ 0.03125”
  • Over 60” = 0.06250”


Slitting Capacity:

  • 7.5" diameter arbor
  • Single slit width = Min: 28" / Max: 62.5"
  • Single slit gauge range = Min: 0.006" / Max: 0.063"
  • 10" max cuts / 6" min cut strand width


Side Trim Width Capability:

  • Min: .50" / Max: 2.25"
  • 8" diam arbor
  • 8" diam cutter on scrap choppers


Tension Leveler and Capabilities:

  • Pure "Flex-roll" tension leveling
  • Flex-roll section: 2 cassettes over 3 cassettes, 2" diam work rolls
  • Entry & Exit 4-Roll Bridle Sections: 4-rolls each bridle, all 8 rolls driven individually, 25" diameter bridle rolls
  • Crossbow correction exit roll (eliminates bowing across the width of the strip)
  • 1% elongation on 58,000 lb. yield at maximum width of 62.5” and minimum gauge of 0.006”


Sold "as is, where is" EXW installed at seller's factory foundation USA.

  • Complete line, no parts have been cannibalized.
  • Gearboxes, etc. have been visually inspected and are in excellent condition.


Specifications

ManufacturerPro Eco
ConditionUsed
Stock NumberTLL-204
