Description

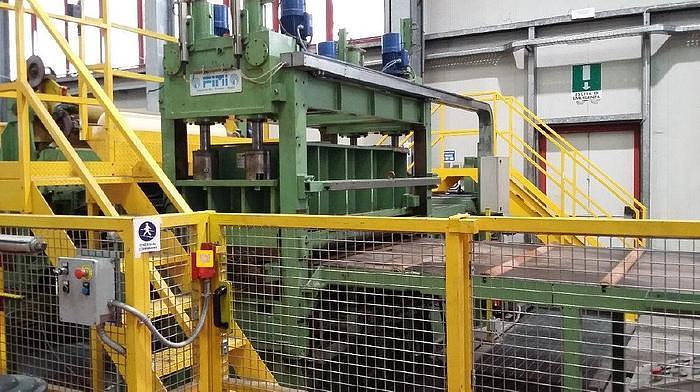

1500mm x 3.0mm Cut-To-Length Line: CTL-144 / Very good condition / Dismantled / Warehoused / 6 meter sheet length / well equipped!
Manufacture:
- FIMI
- Rotary Shear type Cut To Length Line
- for Cold Rolled, Galvanized, Pickled Steel, Stainless Steel, Aluminium, etc.
Strip Width:
- 300 - 1500 mm max (12 - 59")
Strip Thickness:
- 0.5 - 3.0 mm (.020 - .118")
Line Speed:
- 60 mpm max (197 fpm)
- Material entry feed 15 mpm (49 fpm)
Coil Size:
- ID: 508 - 610 mm ("large expansion" mandrel drum with no spacers to add/remove)
- OD: 700 - 1650 mm
- Weight: 15 mtons max (33,000 lbs)
Sheet Stacker:
- 6000 mm (6300mm max sheet length)
Process materials:
- Tensile strength N/mm2 max. 500
- Yield strength N/mm2 max. 380
Products:
- 350mm to 6300mm sheets
- Sheet stack specific load capacity: 1500kg/m
- Sheet stack height incl. pallet: max. 500mm
Line direction: Right to left
Line footprint: 9m x 50m including safety fencing
Floor pit for the sheet stacker: 2m x 8m x 1m deep
Length Tolerances:
- 0.25 mm +/- max up to 2000mm long (at constant line speed)
- For every extra meter = add +/- 0.10mm
Power Supply:
Voltages
- Three-phase 400 V 50 Hz
- Auxiliary 220 V 50 Hz
- Electrovalves 110 V
Hydraulic power pack
- Work pressure (nominal) 100 bar
Pneumatics
- Operating pressure (nominal) 6 bar
Ambient temp. min 5 °C max. 40°C
ENTRY COIL CAR
- Coil elevator "under floor level” (pit), movable by hydraulic motor
- “V” shape saddle, covered with anti-scratch material to support coil
- Side Coil Storage for 2 coils
UNCOILER
- Movable in resp. to central line axis, ± 100 mm
- D.C. motor driven, 22.9kW
- Pneumatic stand-by brake
- OVERHUNG MANDREL DRUM at 508-610mm diam x 1700mm face
- Snubber arm
- Up / down motion by hydraulic cylinder
- Hold-Down Roll rotation by hydraulic motor
COIL THREADING TABLE
- Opening from top side
- Table with fixed opening-tooth
- Lifting / extension movement by hydraulic cylinders
FEED / PINCH ROLLS (2 Rolls)
- lower roll rotation: by hydraulic motor
- upper idle roll vertical movement: by hydraulic cylinders
EDGE GUIDE
- Self-centering system for coil edge control
6-HI LEVELER
- with intermediate rolls and back-ups (7 +7 Series)
- Roll cassette: 17 work rolls, with diameter: 48mm
- Upper leveling rolls: 8
- Lower leveling rolls: 9
- Rotation of work rolls by D.C. motor, 124.9kW
- Stand-by pneumatic disk brake
- Lower back-ups parabola adjustment by 7 hydraulic cylinders
- Localized correction digital readout (visualized)
- Penetration digital readout (visualized)
EXIT PINCH ROLLS
- for PVC Film Dispensers, DC motor driven
TACHOMETER
- Tach. wheel to measure the sheet length
ROTARY SHEAR
- with blade clearance adjustment
- Complete with exit belt conveyor and scrap box (Scrap carriage with manual side extraction)
- DC motor, 143kW
PRODUCTION SPEED / CUTS
Length in mm = number of cuts per minute max
500 mm = 90 cuts
1000 mm = 50 cuts
1500 mm = 40 cuts
2000 mm = 30 cuts
2500 mm = 24 cuts
3000 mm = 20 cuts
4000 mm = 15 cuts
5000 mm = 12 cuts
6000 mm = 10 cuts
CONVEYING SYSTEM - to sheet stacker, rotation of belts by DC motor
PNEUMATIC SHEET STACKER
- 6000mm long with 2 racks (3.000+3.000) with sheet support system to prevent scratches
- with automatic pallet dispenser
STACKING PLATFORM
- static, secured to foundation
- useful length: 6000mm
- platform lifting movement by jacks
- powered chain-table, with rotation by AC motor
- package off-load: along the line axis
CHAIN-TABLE
- static, secured to foundation
- chain rotation by AC VVVF motor
SIGNODE Automatic Bundle Strapping System for ¾” steel straps
EXIT CHAIN-TABLE
- static, secured to foundation
- chains rotation by AC VVVF motor
- complete with Weighing Cells to reach a 5ton stack weight
HYDRAULICS & PNEUMATICS
- Hydraulic central unit location: within 6m from main line axis
- Oil-cooling forced air heat exchanger
- Hydraulic electro-valves: of single-stand design, on board of each line part
- On board pneumatic valves for each line part
ELECTRICS & ELECTRONICS
- AC VVVF main motors
- Motors and sensors onboard, for each line part
- Ventilated, IP23 Electric cubicles (air conditioning not included) at max 6m from main line axis
SAFETY FENCING
- and Photo-Electric Barriers
Specifications
Manufacturer | FIMI / SALICO |
Model | Cut-to-Length Line |
Condition | Used |
Stock Number | CTL-144 |
Type | Cut-to-Length, Cut-to-Length Lines |
Status | For Sale |
Strip Width | - 300 - 1500 mm max (12 - 59") |
Strip Thickness | - 0.5 - 3.0 mm (.020 - .118") |
Sheet Stacker | - 6000 mm (6300mm max sheet length) |
