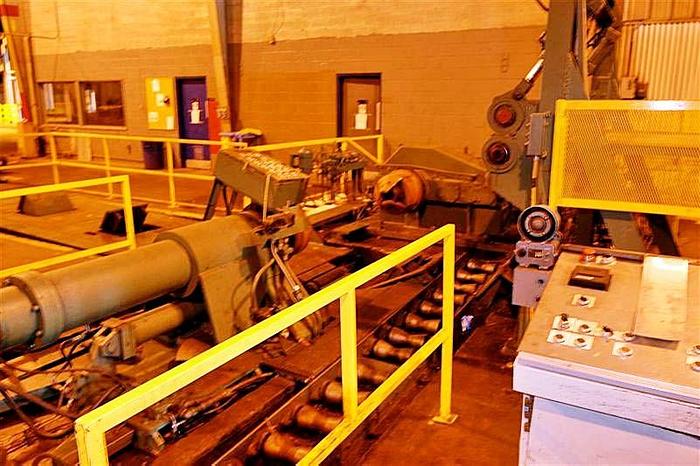

56" Light Gauge Aluminum Tension Leveling Line: TLL-191

Contact us for price

orCall 1-336-597-2370

Description

Manufacture: - Stamco, Hunter, new 1974 Previous Use: - Aluminum lithographic coil Strip Thickness: - .005 - .063" / 0.127 - 1.6 mm Strip Width: - 56" max / 1422 mm Coil Size: - Entry ID - 10 & 20" ID cores - Entry OD - 60" max / 1524 mm - Exit OD - 47" max / 1193 mm - Weight - 15,000 lbs max / 6.8 mtons Equipment Uncoiler: - Double-stud type - 10" & 20" ID steel cores - Hydraulic expansion - Sliding base - Drive - 100 hp DC motor, 300-1800 rpm, regen. brake Entry Crop Shear: - .050" x 62" capacity - Hydraulic operation Strip Joining Press: - 100 ton unit w/ 72" die width Entry Bridle: - 4-roll unit - 21" diam x 62" face rolls - 3 driven rolls - 1 non-driven passline roll HerrVoss Flex-Roll Section: - .003-.100" design capacity - 300-600 fpm line speed capacity - 5 roll cassettes (2 over 3) - 2" diam work rolls - 5.75" backup rolls - 66" roll face - Entry passline roll - 8" diam - Exit pinch rolls - 8" diam Exit Bridle - Same as entry bridle above Strip Thickness Gauge: - One Non-contact type gauge included Exit Crop Shear: - .050" x 62" capacity - Hydraulic operation Recoiler: - Mandrel type - Hydraulic expansion & push off - Sliding base, edge guide - 200 hp DC drive Sold EXW off foundation, in warehouse storage. Decommissioned 2011. Dismantled 2012.

Specifications

ManufacturerStamco
Year1974
ConditionUsed
Stock NumberTLL-191
