26" Stamco Slitting Line: S-262

$102,500 (USD)

orCall 1-336-597-2370

Description

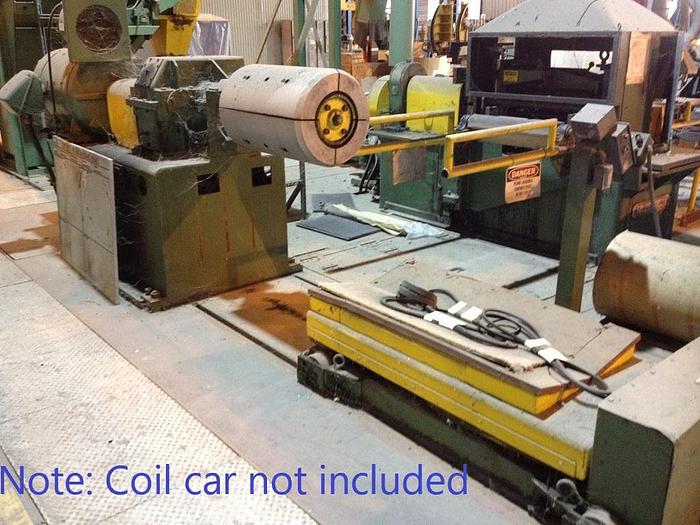

Manufacture: Ruesch, Stamco / New 1963 Strip Width: 26" max / 660 mm Strip Thickness: Thin gauge aluminum Arbor Size: 4.125" / 104.7 mm Coil Size: - ID - 16" / 406 mm - OD - 60" max / 1524 mm - Wt - 10,000 lbs max / 4.5 mtons Line Design: Double looping Hand of line = left to right Equipment - Entry Coil Car: Not included - Uncoiler: Stamco mandrel type 28.5" face, 4 segments, Hydraulic expansion, 48" passline height 30 hp DC motor - rebuilt 1997 - 300/1800 rpm, 240 V, Gear reducer with 5.2:1 ratio - Two Removable Slitter Heads: Ruesch - model 146 4.125" diam arbor / 104.7 mm Ring slitting arrangement 30 hp Reliance DC drive, 1150/2600 rpm, 240 V, Horsburgh&Scott gearbox - Scrap Chopper: Ruesch - model #245, Blower unit - Tension Stand: Ruesch pad type, Hydraulic retraction - Recoiler: Ruesch stub mandrel type 30" face x 16" diam drum (bolt-on plates to 20" ID) Manual expand & grip / Hydraulic push-off / Overarm separator / 40 hp DC motor, 850/2550 rpm, 7.59:1 ratio gearbox - Exit Coil Car - Southworth floor level Sold "as is, where is" EXW removed and in storage, USA. from Phipps Co. equipment suppliers USA

Specifications

ManufacturerStamco
Year1963
ConditionUsed
Stock NumberS-262
