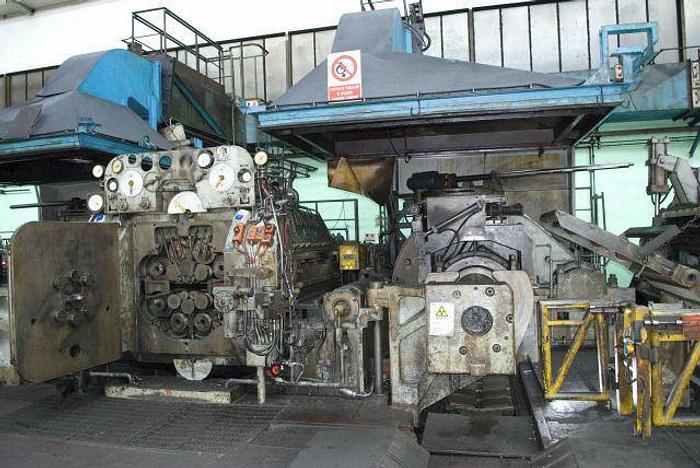

49" Sendzimir 20-Hi Reversing Cold Rolling Mill: RM-423

Contact us for price

orCall 1-336-597-2370

Description

Manufacture: - Innocenti / new mid-1960's - Built under license from Sendzimir Model: ZR22-49 20-Hi reversing Previous Use: Stainless steel Spares: A very large number and high value of spares is included with this mill !!! Line Speeds: 135 & 235 mpm / 443 & 771 fpm Strip Thickness: - Entry - 3.0 mm max / .118" - Exit - 0.4 mm min / .016" Strip Width: 1270 mm max / 50" Coil Size: - ID - 610 mm / 24" - OD - 1850 mm max / 73" - Weight - 21 mtons max / 46,300 lbs Separating Force: 6000 KN max Equipment Uncoiler: - 610 mm diam mandrel - 85 kW, 600/1680 rpm DC motor Mill: - Drive: 1620 kW, 250/450 rpm DC motor - Hydraulic Screwdowns: 13,154 kg maximum force - Work Rolls: 48/58 mm diam x 1466 mm face - First Intermediate Rolls: 97/105 mm diam x 1466 mm face - Second Intermediate Rolls: 169/173 mm diam x 1466 mm face - Coolant System: Mineral oil type, 5000 liter/min system - Hydraulic Crown System: NOT INCLUDED - Gauge Control: Two AccuRay x-ray gauges Tension Reels (2): - 610 mm diam mandrels - 2 x 615 kW, 1230 rpm DC motors each Spares: A very large number and high value of spares is included with this mill !!! Condition: off foundation, dismantled, in warehouse storage Sold "as is, where is" EXW loaded on your containers at current owner's warehouse. from Phipps Co. equipment suppliers USA

Specifications

ManufacturerSendzimir
ModelZR22-49
Year1965
ConditionUsed
Stock NumberRM-423
