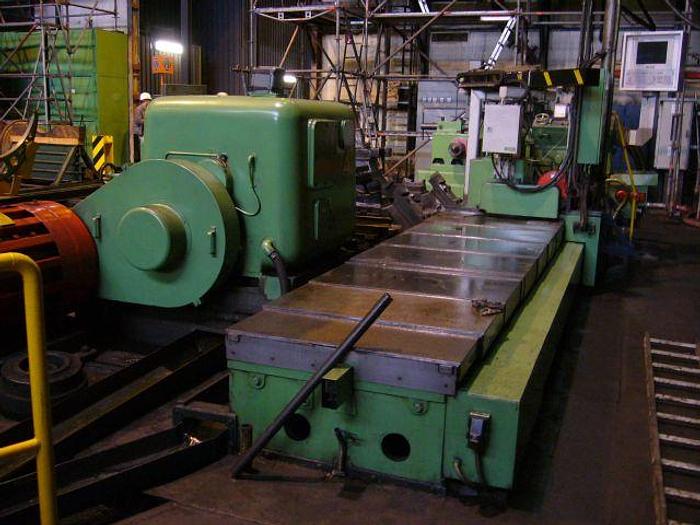

55" x 196" Naxos-Union Roll Grinder: RG-097

Contact us for price

orCall 1-336-597-2370

Description

Manufacture: - Naxos-Union - Model WT 140/5000 - New in 1974 Work Piece Diameter: 40 - 1400 mm (1.57 - 55") Work Piece Length: 5000 mm max (196") Work Piece Weight: - 10 mtons (22,000 lbs) between centers - 20 mtons (44,000 lbs) at the steady rests Equipment Grinding Wheel: - 750 mm max OD (29.5") - 600 mm min OD (23.6") - 305 mm wide (12") - 80 mm center bore (3.15") Number of Steady Rests: Two (2) Work Piece Drive: 22 kW Speed: 7 - 49 rpm Grinding Slide Drive: 22 kW Grinding Slide Speed: 54 - 1300 mm/min Crowning: - Interchangeable wheels - Head and Tail Stock Movements: Manual Sold "as is, where" EXW off foundation. from Phipps Co. equipment suppliers USA

Specifications

ManufacturerNaxos-Union
ModelWT140/5000
ConditionUsed
Stock NumberRG-097
