Scrap Delacquering System: MC-420

$550,000 (USD)

orCall 1-336-597-2370

Description

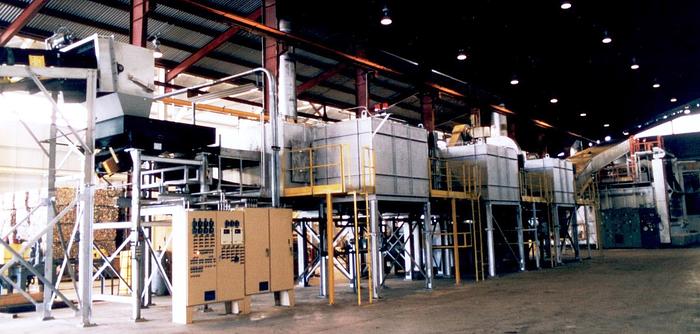

Manufacture: - CEC (Consolidated Engineering Co. - USA) - New 1996 Description - Three-zone CONTINUOUS CONVEYOR type delacquerer - For the removal of organic content from shredded aluminum scrap - To increase metal recovery & minimize VOC, NOX, & dioxin emissions - 3 zones with one burner and one recirculating fan per zone - Recirculation fan pushes heated air up thru the belt & scrap bed to control air & metal temp in each zone - An incinerator destroys VOC & dioxin emissions - Metal delivered to melting furnace at +/- 800 deg F which increases melt rate some 50%. Rated Capacity: - 10,000 lbs/hr max (4.5 mtons/hr) - Throughput is based on 8 lbs/cuft density running 10 fpm - Shredded Scrap Density: 8-28 lbs/cu ft / 3.6-12.7 kg Conveyor Speed: - 15 fpm max / 4.6 mpm - Variable speed and scrap bed depth to handle density variations Equipment Conveyor Belt: - Woven stainless steel - Edge retainers Delacquering Chambers - Three Heating Zones = Propane burners (can convert to natural gas) Zone 1 burner = 4,000,000 BTU/hr Zone 2 burner = 2,000,000 BTU/hr Zone 3 burner = 500,000 BTU/hr Recirculating Fans - 18,000 scfm fan each zone Exhaust Fan - Takes emissions to incinerator Incinerator - 7,000,000 BTU/hr - One second residence time at 1400 deg F gas temp - 2400 scfm combustion blower Sold "as is, where is" EXW on foundation, not in production. from Phipps Co. equipment suppliers USA

Specifications

ManufacturerCEC (Consolidated Engineering Co.)(Heat Treatment Equipment ... www.cec-intl.com/)
Year1996
ConditionUsed
Stock NumberMC-420
