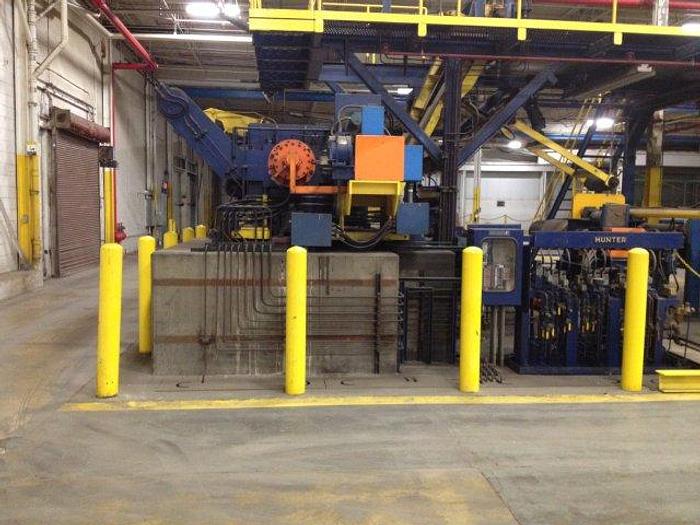

60" Aluminum Can-End Coating Line: CC-157

Contact us for price

orCall 1-336-597-2370

Description

Manufacture:
- Hunter and GFG
- New in 1975
- Reinstalled 1984 with upgrades

Design: Single coat line

Line Speed:
- Rated: 275 fpm / 84 mpm
- Actual ran: 300 fpm / 91.4 mpm

Strip Thickness:
- .008 - .020" / 0.20 - 0.51mm

Strip Width:
- 60" max / 1524 mm
- 66" w/o tension leveling section

Entry Coil Size:
- ID - 20" / 508mm
- OD - ?
- Wt. - 50,000 lbs / 11.34 mtons

Exit Coil Size:
- ID - 16" / 406mm
- OD - 70" max / 1778mm
- Wt - 48,000 lbs / 10.89 mtons

Equipment
Uncoiler #1:
- 80hp, 800/1500rpm, 15.983:1
- Coil Car: Above ground, 50,000lbs
- Scrap Winder: Mandrel / with coil car

Uncoilers #2:
- 80hp, 800/1500rpm, 15.983:1
- Coil Car: Above ground, 50,000lbs

Pinch Roll

Crop Shear

Strip Joiner: Behlen, Single die

Bridle 1 of 7

Entry Accumulator:
- 9 rolls over 8
- 12.8" diam rolls
- 60 seconds of strip storage at 300 fpm

Bridle 2 of 7

Tension Leveler:
- 60" max strip width
- Entry Bridle (Line bridle #3) 2 roll unit
Roll 1 - 25hp, 1750/2500rpm, 34.13:1 ratio
Roll 2 - 50hp, 1750/2500rpm, 330.23:1 ratio
- BWG Flex-Roll Section:
5 roll cassettes
Work rolls: 1.125" & 1.75" diam
Back up Rolls: 2.25" diam
- Exit Bridle (Line bridle #4) 2 roll unit
Roll 3 - 150hp, 1750/2500rpm, 34.5:1 ratio
Roll 4 - 75hp, 1750/2500rpm, 33.02:1 ratio

Bridle 5 of 7

Cleaning Section
- Stages 1-2 = vertical
- Stages 3-4-5 = horizontal
- Vertical Air blow off

Coater:
- GFG, 2 side coat
- Rolls: 10" diam x 72" face

Paint Flow-Out Booth - 15 ft long section

Oven:
- 90 ft long / 27.4m
- 3-zone gas-fired catenary type
- Exit water quench, Exit air quench

Bridle 6 of 7

Exit Accumulator:
- 9 rolls over 8
- 12.8" roll diameter
- 60 seconds of strip storage at 300 fpm

Bridle 7 of 7

Waxer:
- GFG
- 2-12 mg per sq ft laydown

Exit Shear

Exit Pinch Roll

Recoiler
- 60hp, 500/2000rpm, 18,611:1 ratio
- Mandrel type
- With Belt wrapper, coil car, and downender

Sold "as is, where is" EXW on foundation USA.

Specifications

ManufacturerHunter
Year1975
ConditionUsed
