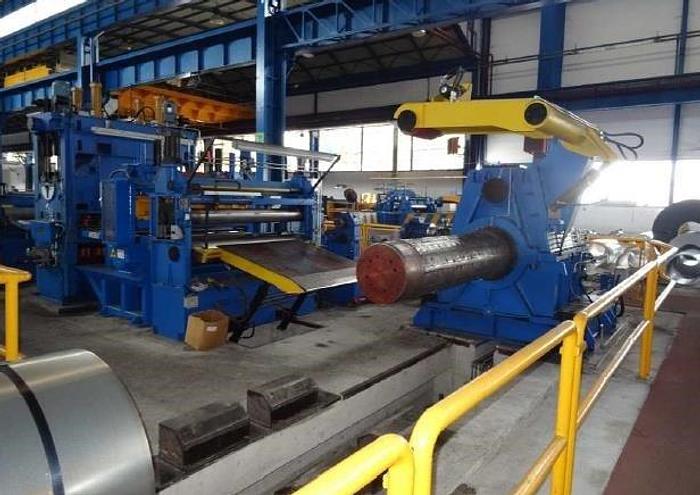

1650mm x 3mm Cut-to-Length Line: CTL-138

Contact us for price

orCall 1-336-597-2370

Description

Manufacture: - FIMI + Salico (Italy) - Upgrades in 2017 - Installed and under power Strip Width: 300 - 1650mm / 12 - 65" Strip Thickness: 0.5 - 3.0mm / .020 - .118" Line Speed: 45 mpm max / 148 fpm Hand of Line: Right to left Coil Size: - ID - 508 & 610mm / 20 & 24" - OD - 1800mm max / 70.8" - Wt - 25 mtons / 55,100lbs Materials Processed: - Steel (CR, Galv, Electrogalv, pickled, painted, stainless), Aluminum - Tensile: 500 N/mm2 max - Yield: 380 N/mm2 max Cut Sheet Specs - Length: 500 - 6000mm / 19.7 - 236" - Stack Height: 500mm max / 19.7" - Stack Weight: 3 mtons max / 6,612lbs - Specific Load: 1500 kg/m max - Cut Tolerances: Up to 2000mm = +/- 0.5mm Each add'l 1000m = add 0.1mm Electrics: 400 V / 3 ph / 50 Hz, 110 volt electro-valves Hydraulics (nominal): 100 bar working pressure Pneumatics (nominal): 6 bar operating pressure Equipment: - Coil Storage - 3 coil capacity - Entry Coil Car - In-floor design / hydraulic / "V" saddle / anti-scratch - Uncoiler - Sliding base design / DC motor / pneumatic brake / uncoiling from the top / Hold down arm - hydraulic - Coil Opening Table - Pinch Roll - Feeding coil to leveler - Straightener - by Salico / 5 work rolls / 5 sets of upper back ups / 5 sets of lower back ups - 6-Hi Leveler Rolls and cassette system new in 2017 17 work rolls (8 over 9) 56 mm diam work rolls 90 kW DC motor drive with "stand-by" pneumatic brake Correction by 7 hyd cylinders with parabolic adjustment on lower back-ups - Exit Pinch Roll - Measuring Wheel - by tachometer - Flying Shear - Entry support table / Manual blade clearance adjust / Exit belt conveyor at speed / Scrap car with manual side extraction - Conveyor - To stacker / AC driven belts - Stacker - 6000mm, 2 rack sections (<3000mm = 1 rack, 3000mm+ = both racks) - Stacking Platform - 6000mm length / Up-down motion by jacks / powered chain table / AC driven chains - Signode Strapping Machine - 3/4" steel strap - Electrics and Electronics - New 2012 / AC motors / Digital HMI on operator desk Sold "as is, where is" EXW on foundation. from Phipps Co. equipment suppliers USA

Specifications

ManufacturerFIMI / Salico
ConditionUsed
Stock NumberCTL-138
