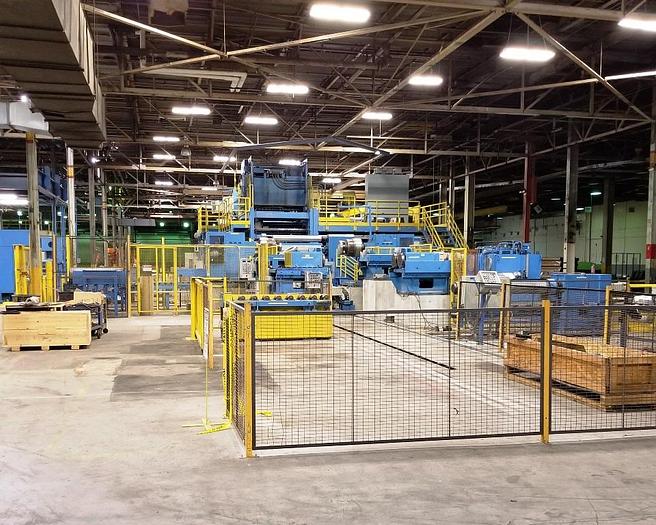

70" Kampf Foil Slitter/Separator: FS-125

Contact us for price

orCall 1-336-597-2370

Description

Manufacturer: - Kampf / model RKW-1003 / new 2001 Web Width: - 25 - 69" / 635 - 1753 mm Web Thickness: - .002 - .015" / 0.05 - 0.381 mm Line Speed: - 2600 fpm max / 800 mpm Material: - Aluminum: Alloys 1100, 3003, 7072, 8111 in tempers 0 - H19 Special Products: Kampf reports this line can process the following with knife modifications: - .037" (0.93 mm) can lid stock - .081" (2.06 mm) dead soft, 0 temper aluminum Equipment Details: UNCOILERS: - OD: 24 - 90" / 610 - 2286 mm - Spool Sizes (ID, OD, Length): a. 23.75 x 26 x 72" (603 x 660 x 1829 mm) b. 12.81 x 16 x 66" (325 x 406 x 1676 mm) c. 12 x 16 x 27.5" (305 x 406 x 698.5 mm) RECOILERS: - Slit Widths: 0.6 - 46" / 15.8 - 1169 mm - Max Cuts: 40 cuts plus edge trims - OD: 18 - 72" / 457 - 1829 mm - Spool ID: 6, 10, 12, 16" on fiber cores (152, 254, 304, 406 mm) SLITTER: - Knife Type: Scissor cut - Edge Trim (Per side!): 0.5 - 2.0" / 12.7 - 50.8 mm - Scrap chopper internal parts not included - Slit Width Tolerance: 0.0039" (+/-) / 0.1 mm - Jog Speed: 32.8 fpm / 10 mpm - Acceleration/Deceleration: VO-V max in approx. 80 seconds - Uncoiler Wind Tension: 12 - 650 N max - Recoiler #1 Wind Tension: 318 - 6328 N / 25% taper tension at outer diam - Recoiler #2 Wind Tension: 318 - 8438 N / 25% taper tension at outer diam - Elongation Unit (Stretch) 1.5 - 3.0% with a target of 2.0% - Power: 480 V / 3 phase / 60 Hz Total supply = 700 KVA Control voltage = 24 volts - Air Continuous pressure = 5.5 bar / Consumption = +/- 24 Nm3/hr - Water = 1.5 m3/hr flow (53 cu ft/hr) - Main Machine Drive side on right Uncoiler= stepped expand heads Stretcher stand Two (2) slitter cassettes Pusher plates on recoiler - Drive / Control: Siemens drives, motors, & SPS, Siemens PLC w/ modem, software - Winding Shafts: 6" / 152 mm = 2 10" / 254 mm = 2 12" / 305 mm = 2 16" / 406.4 mm = 2 - Uncoiler Coil Handling Fixed-saddle coil car / Core roller table / Core deposit unit / 2-coil stands (non-driven) for 66", 72", 76" spools / Empty spool roller table - Recoiler Coil Handling Two (2) transport cars - Edge Trim Scrap handling: Suction, chopper, transport, air separator, and diverter gate. Vacuum hose, Maintenance platform Sold "as is" EXW on foundation.

Specifications

ManufacturerKampf
ModelRKW-1003
Year2001
ConditionUsed
Stock NumberFS-125
