Herlan P5 Impact Extrusion Press: IEX-201

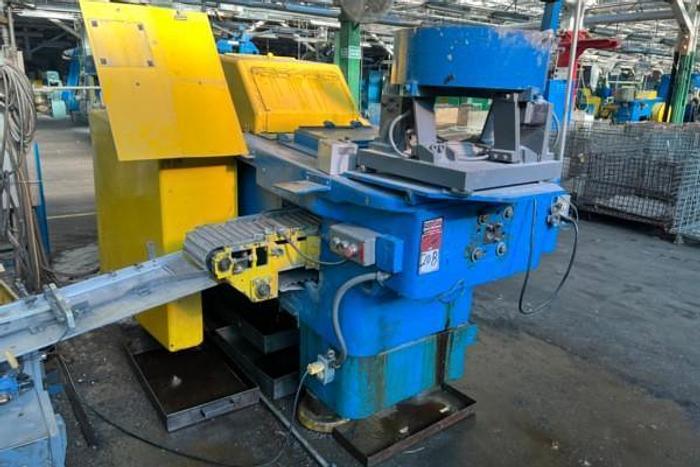

Used HERLAN P5 Impact Extrusion Press

Manufacture

• Herlan / 19?? / SN -
• Model - P5

Nominal Power

• 240 metric tons

Stroke Length

• 300 mm max

Aluminum (99.5)

• Max Diameter - 38mm
• Max Wall Thickness - 0.10mm
• Max Extruded Length - 250mm

Zinc (at 130 degrees C)

• Max Diameter - 32mm
• Max Wall Thickness - 0.35mm
• Max extruded Length - 80mm

Number of Strokes per minute

• 85

Motor Power

• 15 kW

Size

• 3230mm L x 2200mm W x 1680mm H x 7,200kg
• 10ft 7in L x 7ft 3in W x 5ft 6in H x 16,000lbs

Includes

• Bowl Feeder
• Air Actuated Clutch Motor
• Ejector

Sold "as is, where is" USA warehouse.
