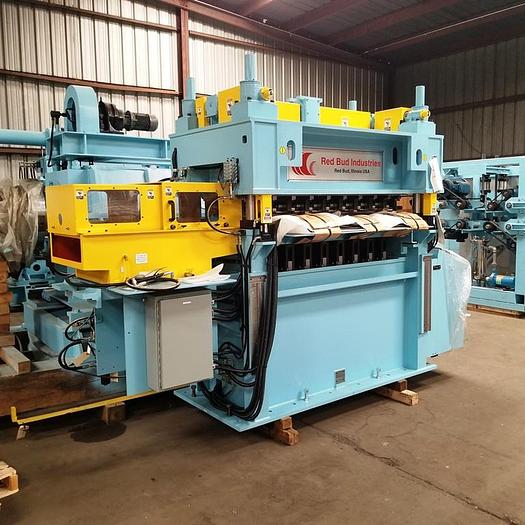

New 2018 Red Bud 60" Precision Cut-to-Length Line: CTL-143

Contact us for price

orCall 1-336-597-2370

Description

Manufacture
- Red Bud Industries
- New 2018, never installed or operated

Strip Width
- 63" (1600mm) max entry (machine clearance)

Strip Thickness
- .010 - .050" (0.25 - 1.27mm)

Coil Size
- ID: 17-23" (432-584mm)
- OD: 75" (1095mm)
- Weight: 28,000lbs (12,701kg)

Material
- CRS-Galv-Alum
- Max tensile strength at max thickness = 50,000 psi (344.74 N/mm2)

CTL Tolerances
- Length accuracy = +/- .0005" (0.13mm)
- Squareness = .015" (0.38mm)
- Diagonal = .030" (0.76mm)
- Feed stroke length = 120" (3048mm)

Stack Specs
- Max Stack length = 144" (3658mm)
- Max Primary Stack weight = 10,000 lbs (4536kg)
- Max Stack height = 24" (610mm) including skid

Sold off foundation, in dry warehouse storage

Specifications

ManufacturerRed Bud
ModelRLPR60
Year2018
ConditionNew
Serial NumberPRE18-M-1004
Stock NumberCTL-143
