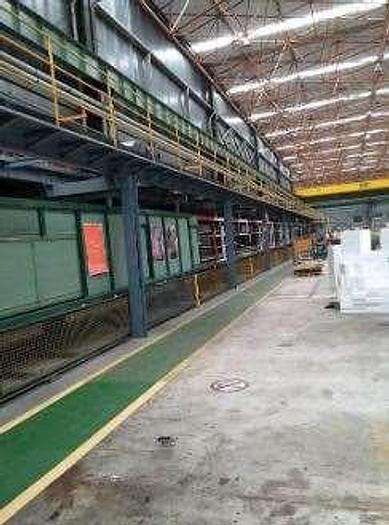

CONTINUOUS Polyurethane Sandwich Panel Line for Roof and Wall: RF-207

CONTINUOUS Polyurethane Sandwich Panel Line for Roof and Wall: RF-207

orCall +1 (336) 597-2370

Description

CONTINUOUS Polyurethane Sandwich Panel Line for Roof and Wall: RF-207



Manufacturer

  • HENNECKE (German) + several other manufacturers
  • New - 1987



Operation

  • Continuous mode



Specifications / Equipment

Line Speed

  • 3 to 8 mpm



Panel Thickness:

  • minimum 30 mm, maximum 200 mm
  • Typical wall = 35 - 120 mm
  • Typical roof = 30 - 150 mm



Coil Size

  • Strip thickness = 0.4 - 0.8 mm (.0157 - .0315)
  • Coil weight: 12 mtons max (26,500lbs)
  • OD = 1400 mm (55")



Uncoilers (2)


Plastic film on panel skin applicator



Common inside profile for roof and wall



Roll forming line for roof panels



Roll forming line for wall panels



Corona-treatment



Infrared heating up to 60° C



Press

  • 20 meters double belt
  • 900 mm wide
  • Fixed poker distribution system



Foaming (5 component dosing unit)

  • Polyol
  • ISO
  • Pentane
  • 2 x catalyst
  • Chiller
  • Heating system with hot air



Saw



Conveyor



Automated Stacker and Vacuum Lift



Packing



Cover profiling machine roof



Cover profiling machine wall



Electric and control by Siemens

Specifications

ManufacturerHennecke
Year1987
ConditionUsed
Stock NumberRF-207
