2018 62" New and Refurbished Coil Coating Line: CC-175

Contact us for price

orCall 1-336-597-2370

Description

This offering is a combination of BRAND NEW coil coating line equipment ... and ... a used coil coating line that has now been refurbished.

The new equipment was engineered and built in 2017-2018 by various top-tier manufacturers (please see the list below). The equipment is still in crates in most cases.

The used line (our reference CC-156) was a coil coating line installation in Korea that was purchased by a company in Turkey. The Turks moved the line to Turkey (this is when many components were scrapped). The Turks never installed the line and a customer of Phipps Company bought and moved the line to the United States to make the backbone of this 62" offering. This used equipment was refurbished in 2017-2018 has not been installed.

Phipps Company's customer worked diligently to make this 62" line a reality. But their core business is a niche, narrow coil market. In the end, they decided to abandon the project and sell the equipment.

This is a unique opportunity to buy $10 million worth of equipment at a huge discount! Please see the details below and contact us for more detail if interested. An inspection is possible at anytime and the equipment builders are available to discuss current details and engineering plus the possible application of the equipment to your project.

SPECIFICATIONS:

- Strip Width = 62" (1575 mm)
- Strip Thickness = .010 - .050" (0.25 - 1.27 mm)
- Material = aluminum, mild steel, galvanized, etc.
- Line Speed = 300 fpm (91.5 mpm)
- Coil Size:
ID - 16 & 20" (406 & 508 mm)
OD - 72" (1829 mm)
Weight - 50,000 lbs (27,272 kg)
- Electrics - 480-500V / 3ph / 60Hz

SCOPE / EQUIPMENT LIST:

1 Entry Coil Car #1 with Coil Saddle - New by Globus (Italy)
2 Uncoiler 1 - New by Globus
3 Entry Coil Car #2 with Coil Saddle - New by Globus
4 Uncoiler 2 - New by Globus
5 Pinch roll 1 with feed table - New by Globus
6 Pinch roll 2 with feed table - New by Globus
7 Entry Shear - Used - CC-156 refurbished
8 Strip Joiner - Used - Behlen type - CC-156 refurbished
9 Deburring Unit - New by Globus
10 Bridle #1 - Used - CC-156 refurbished
11 Entry Accumulator Tower - New - Engineering only, structure not built yet
12 Entry Accumulator rolls & bearings - New - by American Roller / B&D
13 Steering Roll #1 Frame - Used - CC-156 refurbished
14 Steering Roll #1 Controls - New by Maxcess (was North American)
15 Steering Roll #1 Rolls - Used - CC-156 refurbished
16 Bridle #2 - Used - CC-156 refurbished
17 Pretreatment Wash Sections - New by Globus
18 Pretreatment Rinse Sections - New by Globus
19 Bridle #3 - New by Globus (functioning as tension leveler entry bridle)
20 Tension Leveler - New by Globus - Actual Flex-Roll Section
21 Bridle #4 - New by Globus (functioning as tension leveler entry bridle)
22 Steering Roll #2 Frame - Used
23 Steering Roll #2 Controls - New by Maxcess
24 Steering Roll #2 Rolls - Used - CC-156 refurbished
25 Abrader - New by EFI
26 Bridle #5 - Used - CC-156 refurbished
27 Steering Roll #3 Frame - Used
28 Steering Roll #3 Controls - New by Maxcess
29 Steering Roll #3 Rolls - Used - CC-156 refurbished
30 Chem-Coater - Used - CC-156 refurbished (a used Globus unit, new in 2013)
31 Chem-Coater Oven - New by EPCON (Storage at Houston, TX)
32 Steering Roll #4 Frame - Used
33 Steering Roll #4 Controls - New by Maxcess
34 Steering Roll #4 Rolls - Used - CC-156 refurbished

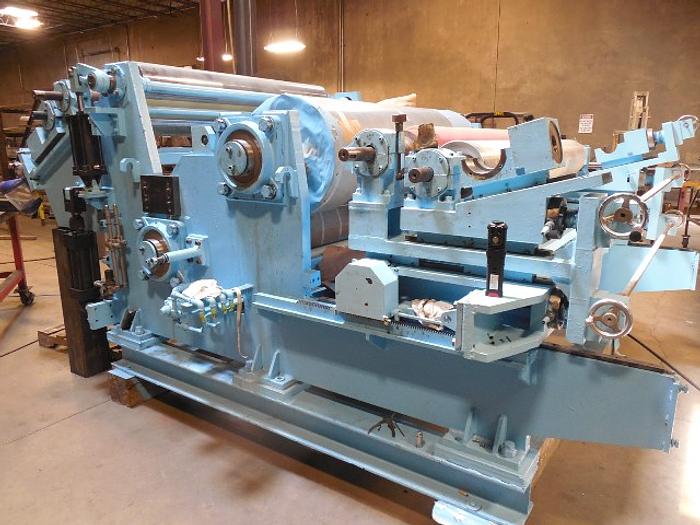

35 Primer Coater - Used - CC-156 refurbished, 3-roll type, new 2004, with load cells
36 Primer Oven - New by EPCON
37 Primer Quench - Used - CC-156 refurbished
38 Steering Roll #5 Frame - Used
39 Steering Roll #5 Controls - New by Maxcess
40 Steering Roll #5 Rolls - Used - CC-156 refurbished
41 Bridle #6 - Used - CC-156 refurbished
42 Steering Roll #6 Frame - Used
43 Steering Roll #6 Rolls - Used - CC-156 refurbished
44 Finish Coater - Used - CC-156 refurbished, 3-roll type, new 2004, with load cells
45 Finish Oven - New by EPCON
46 Finish Quench - Used - CC-156 refurbished
47 Steering Roll #7 Controls - New by Maxcess
48 Bridle #7 - Used - CC-156 refurbished
49 Exit Accumulator Tower - New - Engineering only, structure not built yet
50 Exit Tower rolls & bearings - New - by American Roller / B&D
51 Steering Roll #8 Controls - New by Maxcess
52 Exit Shear - Used - CC-156 refurbished
53 Exit Deflector Roll - Used - CC-156 refurbished
54 Recoiler with Coil Saddle - New by Globus
55 Belt Wrapper - New by Globus
56 Core loader - New by Globus
57 Exit Coil Car - New by Globus
58 All the GLOBUS equipment includes new motors
59 The EPCON ovens are complete new with fans, electrical panels and burners
60 The CC-156 equipment comes with the original motors

Spare Used CC-156 refurbished equipment:
61 Entry Coil Car 1
62 Uncoiler 1 mandrel type with feed-up rolls
63 Entry Coil Car 2
64 Uncoiler 2 mandrel type with feed-up rolls
65 Recoiler mandrel type
66 Belt Wrapper
CC-156 Electrical Supply was 1250 kW total demand except for the Adphos ovens. All motors = AC, 400V, 50Hz

Also available:
67 Oxidizer - Used - CC-156 NOT REFURBISHED - by MegTec (Germany)(new 2010)(3-chamber regenerative thermal oxidizer)(Suitable for the CC-156 used line but for the new line. We have design and capacity information.

ORIGINAL CC-156 USED LINE SPECIFICATION:
- Manufacture = Hypec (Korea) + Globus chem coater + Adphos near infra-red ovens scrapped
- Strip Thickness = 0.3-1.2 mm (.012" - .048")
- Strip Width = 700-1600 mm (27.6" - 63")
- Coil Size = ID of 508 mm (20") / OD of 1600 mm max (63") / 12 mtons max (26,448 lbs)
- Line Configuration = left to right, two coats

Sold "as is, where is" EXW warehouse floor USA.

Specifications

Manufacturer62" New and Refurbished Coil Coating Line: CC-175
Year2018
ConditionNew
Stock NumberCC-175
