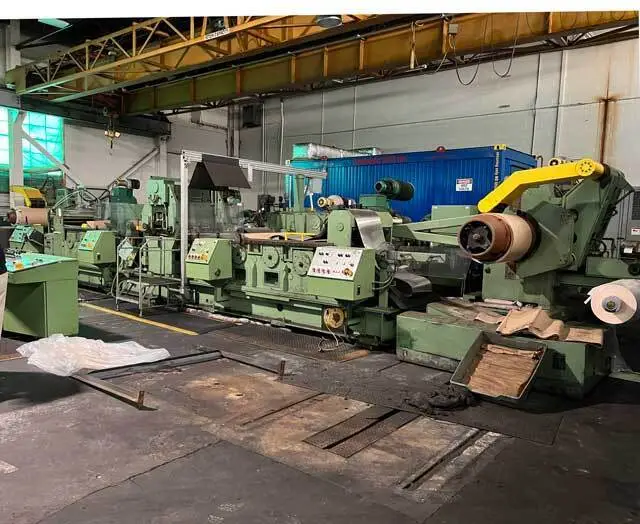

30" (762mm) Ungerer/B&S Tension Leveling Line for Stainless Steel: TLL-206

FOR SALE: Very Nice 30" Stainless Tension Leveling Line

Manufacture
- Ungerer (now B+S [Burghardt + Schmidt] who purchased Ungerer)
- New = 1986
- 2014 = upgrades by B&S, see below
- Decommissioned early 2022
- MANY SPARES
- VERY GOOD CONDITION

Type
- Common base (Mono Frame)
- Individually driven bridles
- High / Low Tension Operation (two speed gearing)
- Entry LAP welder, wheel type for coil joining

Material
- Stainless Steel

Strip Width
- Minimum = 12" (305mm)
- Maximum = 30" (762mm)

Strip Thickness
- Annealed = .002 - .040" (0.05 - 1.0mm)
- 1/4H, 1/2H, 3/4H, FH, EFH = .003 - .030" (0.076 - 0.76mm)
- 1/4 Hard is easily processed at .039" by current owner (0.99mm)
- SFH = .006 - .030" (0.15 - 0.76mm)

Coil Size
- Entry and Exit ID = 16-22" (406 - 559mm)
- Entry and Exit OD = 60" (1524mm)
- Entry and Exit Weight = 15,000lbs (6,804kg)

Equipment:
- Uncoiler - sliding base
- Entry Bridle Section - 4 bridle rolls, individually driven
- Leveling Section
- Exit Bridle Section - 4 bridle rolls, individually driven
- Recoiler

Electrics: 480V / 3ph / 60Hz - AC

2014 B+S UPGRADES =
Electrical Housing Container (+/- 6m L x 2.5m W x 3m H)

NEW SWITCHGEAR
Switching cabinets
Paint of the switchgear
Cooling of the switchgear
Container solution
Lighting of the Switch gear
Safety coverings
Wiring
Terminal strips
Inscription
Wire identification
Power supply
Voltage supply
Emergency off design
Remarks to Control Voltage 115V

SUBSTATIONS

AUTOMATION CONFIGURATION
Level 1 (PLC)
Position control for the back ups
Level 2 (Visualization)
Cold standby HMI PC (Option)

PROCESS DATA CONCEPT FOR B+S STRETCH-BEND-LEVELLING LINE
General information
PDI data base table
PDO data base table
Possible data input/output options
PDI/PDO Data Stretch-Bend-Levelling Line
Uninterrupted power supply
Simatic Field PG (Option)
WinCC development software (Option)
Automatic functions

NEW MAIN OPERATION DESK
AUXILIARY DESKS
RECTIFIERS

Sold "as is, where is" EXW on foundation, USA
