1500 mton x 6-7" Farrel Aluminum Extrusion Line: EX-497

1500 mton x 6-7" Farrel Aluminum Extrusion Line: EX-497

orCall +1 (336) 597-2370

Description

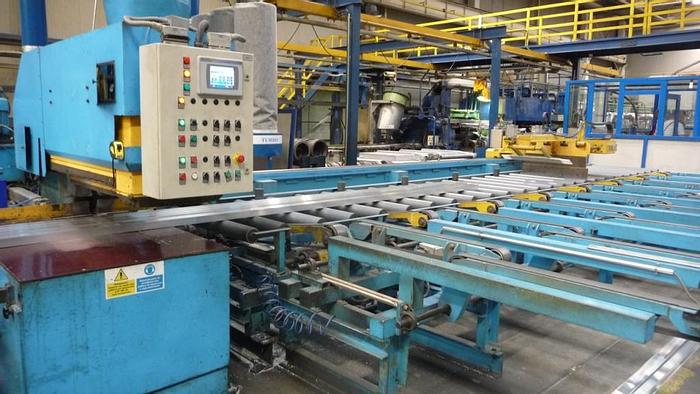

Very good condition 1500 mton x 7" Farrel Aluminum Extrusion Line on Foundation. In operation!


Manufacture:

  • Farrel - new ???
  • Major refurbishment = 2002 = press, log storage, log heater, hot log shear, billet loader, cooling tables, die oven.


Log Size

  • Diameter - 6" and 7"
  • Length - 7000mm max
  • Billet Length = 350-710 mm


Specifications and Equipped with:

  • Aluminium alloys = 1050, 1070, 6060, 6063, 6005, 6061
  • Press loading = conventional rear loading
  • Press power = 15 MN
  • Working pressure = 21 MPa
  • Press Stroke = 1500 mm
  • Main piston diameter = 895.35 mm
  • Auxiliary cylinders pistons diameter = 228.6 mm
  • Auxiliary cylinders piston rods diameter = 165.1 mm
  • Number of main pumps = by Rexroth = 3
  • Log heating oven productivity = 1500 kg/hr
  • Length of the billet for extrusion (for 7” billet) - 350-710 mm
  • Extrusion speed at maximum pressure = 25 mm/s
  • Specific pressure on the billet (7” billet) = 60.5 kg/mm2
  • Dead time of the press including BURP cycle = 30 seconds
  • Extrusion press productivity per hour = 1100 kg/hr max.
  • Die package dimensions = 316.7mm diam x 330 mm
  • Maximum length of extrusion = 42 meters max.
  • Length of the run out/cooling tables = 45 meters
  • Profile bundle after the press = 130 mm high x 130 mm wide
  • Quench of hot profiles = air cooling
  • Hot saw = fixed (at 10m from press)
  • Puller = 1, single type
  • Profile bundle width at finish (cold) saw = 900 mm
  • Profile length during cutting at finish (cold) saw = 1300-7500 mm
  • Profile cutting precision = +/- 1mm
  • Profile handling = manual
  • Total installed power = 700 kW
  • Extrusion press control unit = Allen Bradley
  • Log heating oven control unit = Siemens
  • Cooling tables control unit = Allen Bradley


Personnel = 5 workers run this line


Equipment Size

  • Total Line footprint = 90m x 15m (approx.)
  • Press Only Size: 9000mm L x 5000mm W x 3600mm H x 68000 kg weight

Specifications

ManufacturerFarrel
ModelAluminum Extrusion Press
Year2002
ConditionUsed
Stock NumberEX-497
