Used and New Continuous Expanded Polystyrene Sandwich Panel Line: RF-204

Used and New Continuous Expanded Polystyrene Sandwich Panel Line: RF-204

orCall +1 (336) 597-2370

Description

Used & NEW Continuous/Automatic E.P.S. Sandwich Panel Line

  • new 2016!
  • price includes export packing and delivery to port!
  • price includes 5 men for 15 days to oversee installation, startup, and test runs!


Specifications:

  • Panel Types = Automatic Combined System for Roof and Wall Panel

4 type of profiles = 2 x wall panels + 1 x rib panel + 1 x roof panel

  • Panel thickness range = 40 - 200 mm
  • Panel width = 1,000 mm max
  • Line speed = 12 mpm max
  • Entry Coil Size = 1040-1219mm width x 0.4-0.5mm thick x 5000kg max weight
  • Insulation specs =

Material = EPS

Thickness = 50 - 200 mm

Width = 500W x 2 = 1,000W mm

Length = 3,600 mm

  • Main Power =

Electric source = AC380V × 50Hz × 3phase × 75kW

Pneumatic pressure = 5 - 6 Kg/㎤ (10HP)

  • Production Height = Floor Level + 1,050 mm
  • Line Dimensions = 50,000mm L x 3,000mm W x 3,000mm H


Equipment:

  • Three (3) Uncoilers
  • One Roll Former for roof and rib panel
  • Two no-mold forming machines
  • One EPS storage system
  • One EPS supply device
  • One Laminating machine
  • One Flying shear
  • Two tanks for agitation and bond
  • One Electrical control panel


Equipment Details:

1. Uncoilers (3) (item UCL-5) - supplying coils to the roll former

  • Type - hydraulic cone and mandrel type
  • Coil ID = 508 mm
  • Coil OD = Max. 1,000 mm
  • Coil weight = Max. 5,000 Kg
  • Brake = Band brake type
  • Drum drive = Free
  • Shipping weight = 1,500 Kg each or 4,500 Kg total


2. Roll Former for Roof Panel (item RFP-1000)

  • Type = Side plate stand type
  • Roll stands = 22
  • Roll Material = S45C hard Chromium coated
  • Roll Shaft diameter = 80 and 85 mm
  • Drive = AC motors, geared motor-inverter
  • Up/down operation of roll = manual screw type
  • Coil cutting machine = chain type (2 sets)
  • Weight = 16,000Kg


3. No-Mold Forming Machine (item NOM-7/1000)

  • Type - Side plate type
  • Roll stands = 7 stages
  • Roll Material = S45C hard Chromium coated
  • Shaft diameter = 45 mm
  • Up/down operation = manual screw
  • Weight = 450Kg each or 900Kg total


4. EPS Storage (item STG1-1000) - storage for stacked EPS boards

  • Type = automatic chain feed
  • Capacity = height for 1,500 mm max / width for 1,000 mm max
  • Line speed - 0 to 16 mpm
  • Drive = AC motor, geared motor-inverter
  • Weight = 900Kg


5. EPS Supply Device (item ESD ESD-1000) - transporting EPS boards

  • Type = roller feeding type
  • Quantity = 2 sets
  • Roller diameter = 180 mm, Rubber coated
  • Up/down operation = manual screw
  • Coil gate drive operation = Hydraulic cylinder
  • Weight = 4,000Kg

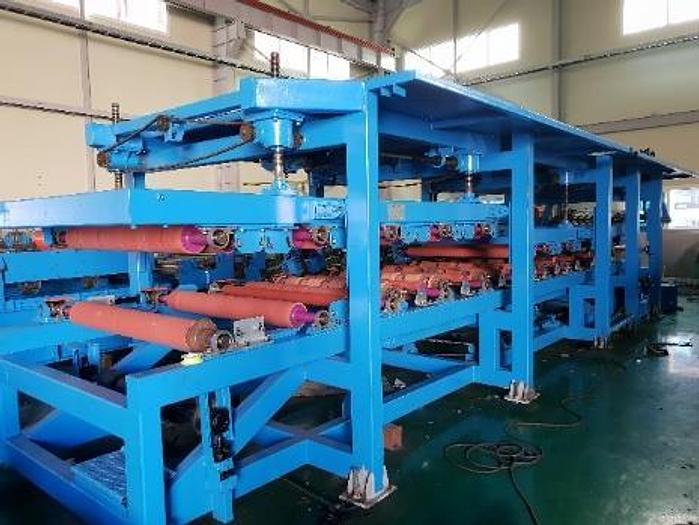

6. Laminating Machine (item LNT-8/1000) - attaches internal and external color steel sheets to the EPS board with urethane bonds and is designed to adjust thickness

  • Type = Roller sandwich type
  • Up/down operation of upper frame = Screw jack & motor
  • Roller = 160mm and 105mm diameters, Rubber coated
  • Roller stands = 23
  • Bond mixing machine = 1 x top and 1 x bottom (2 sets total)
  • Pump = 4
  • Drive = AC motor, geared motor inverter
  • Corrugator = 1 x top and 1 x bottom (2 sets total)
  • Coil cutting machine = Chain type – 2sets
  • Weight = 13,000 Kg


7. Flying Cut-to-Length Machine (item ECTM-1000) - cutting finished panels to the desired length automatically

  • Type = Automatic moving flying shear
  • Cutting length = 1,500 mm min to unlimited max
  • Cutting thickness = 40 - 200 mm
  • Cutting width = 1,200 mm max
  • Material of cutting mold = SKD11
  • Operation of upper mold up/down = Screw & AC geared motor
  • Operation of product clamp = Air cylinder
  • Weight = 3,000 Kg


8. Agitation and Bond Tanks (2 sets) (item BTK-600) - maintains urethane bonding material at constant temperature

  • Type = Standard fixing type
  • Capacity = 600 liters
  • Frame = SS400 etc. / 1050 mm diameter x 1,250 mm long
  • Pump = Geared pump, 1HP, 300 rpm
  • AC motor = 1HP, 4P
  • Agitator drive = Geared motor 1HP 1/60
  • Agitator shaft = 45 mm diameter x 60 mm diameter
  • Bearing = UCFL208
  • Heating rod = 3K
  • Electric control panel
  • Mixed by convection arms
  • Weight = 2,500 Kg


9. Run-Out Conveyor (item COV-5)

  • Type = Roller type, non driven
  • Roller diameter = 65 mm, rubber coated
  • Weight = 140 Kg


10. Electrical Control Box (item ECB-EPS)

  • Source = AC380V ×500Hz ×3Ø×60KW
  • Composition: Main control panel = laminating / Sub control panel = fly cutting
  • Features: length, number counter, error corrector, etc
  • Weight = 300 Kg


11. Roof Pad Cut-to-Length Machine (NEW) (item RPNC-EPS) - hot wire cutting of roof-shaped EPS boards

  • Type = Blade type
  • Roller diameter = 100mm, rubber coated
  • Drive = AC Geared motor
  • EPS Board size = 32t x 1000 x 1200 (mm)
  • Weight = 1,200Kg


Sold "as is, where is" now dismantled but sold FOB seller's marine port.





Specifications

ManufacturerKorea Ilkwang
Year2016
ConditionUsed
Stock NumberRF-204
