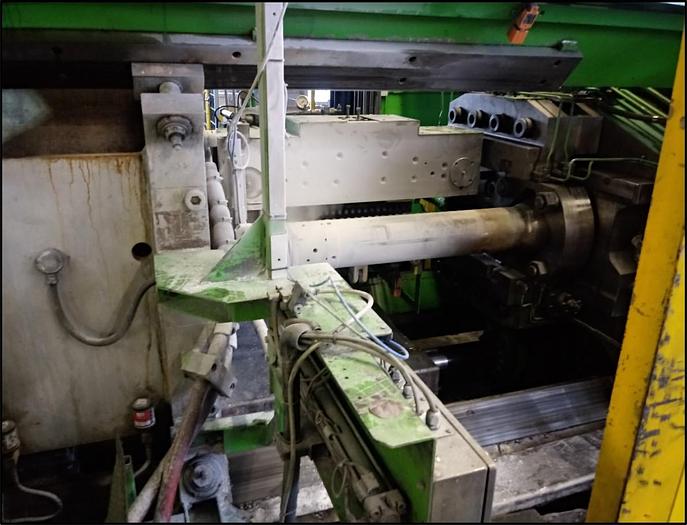

2000 mton SMS Aluminum Extrusion Line with Log Heater and Hot Log Shear: EX-494

2000 mton SMS Aluminum Extrusion Line with Log Heater and Hot Log Shear: EX-494

orCall +1 (336) 597-2370

Description

Very Good Condition Complete line including Log Heater and HOT LOG SHEAR


Manufacture:

  • SMS / new 1980


Status:

  • In operation until December 2021


Type:

  • Aluminium oil hydraulic, horizontal, extrusion press and complete handling system
  • Back loading


Billet:

  • 8" / 203mm diameter
  • 39.4" / 1000mm length


Repairs

  • 1996 = modernized the hydraulic system (ND, DH and pusher pump)
  • 2002 = modernized the cylinder crosshead
  • 2019 = crack in front platen welded


Specifications:

Press

  • Press capacity (nom) - 20 MN / 2000 mtons
  • Ram-Speed = 18 mm/s
  • Dead cycle (incl. burb) = 20.5 s
  • Diameter Container = 209.94 mm
  • Die set diameter = 425 mm
  • Die set length = 450 mm
  • Diameter press exit = 350 mm
  • Container = 1 Zone


Hydraulic components

  • Pumps = Bosch Rexroth, 3 HD-Pumps A2V 500 HM OL5EP AN
  • Main motors = 3 x ASEA 160 kW, 50 Hz 970 rpm
  • Control system = Siemens S 5
  • Energy consumption = Electricity = 109 kWh/t


Gas Furnace

  • Otto Junker / new 1996
  • Modification to flat billet use is designed into this furnace
  • Log Size = 203 mm diam x 3500 mm min log length x 7000 mm max log length
  • Alloy = 6xxx  series
  • Billet size = 360 mm min length x 1000 mm max length
  • Max. productivity = 3600 kg/h
  • Additional front heating = 30°C
  • 2-part billet (head and tails) processing is possible
  • Energy consumption = Gas - 410 kWh/t / Electricity - 31 kWh/t


Log Loader

  • included


Hot Log Shear

  • Otto Junker / new 1996
  • Shear force = 2000 kN
  • Power Unit
  • Billet feeding system


Spare Parts

  • Containers for round billet = 3
  • Containers for flat billet = 1
  • Ram = 1
  • Various hydraulic pumps and electric motors

Sold "as is, where is" EXW plant foundation. Delivery in Dec 2021.


Specifications

ManufacturerSMS
Model8" or 203mm
Year1980
ConditionUsed
Stock NumberEX-494
