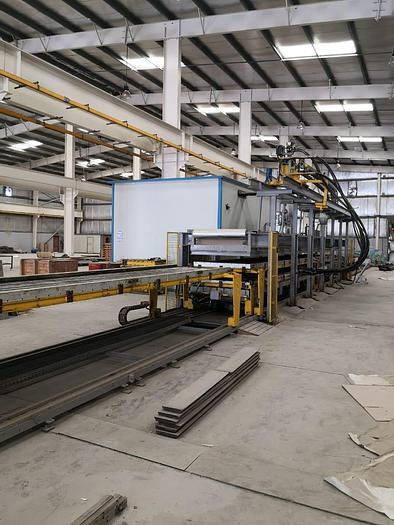

1400mm (55") Manni and Cannon Polyurethane Panel Line: RF-203

1400mm (55") Manni and Cannon Polyurethane Panel Line: RF-203

orCall +1 (336) 597-2370

Description

MANNI PRESS

  • Press with motorized platens
  • Platen Dimensions = 12,500mm x 1400mm
  • Equipped with temperature control unit (electric boiler 56 Kw)
  • Manual side bars
  • Motorized foaming head support trolley & safety panels
  • Working platens = "2+2"
  • Heating platen thickness = 83mm
  • Max panel dimension = 1400 mm
  • Hydraulic power cylinders = 14 cylinders
  • Max working pressure at the platens = 300 bar
  • Voltage = 400 V x 3 phase


CANNON FOAMING MACHINE

  • Model CMPT 200 FC
  • MIN Foaming pressure = 9.0 bar
  • MAX Foaming pressure = 250 bar
  • Isocyanate tank
  • Polyol tank
  • Required dry pneumatic air pressure = 10 bar max


All the manuals and drawings are available

Sold "as is" EXW seller's foundation.


Specifications

ManufacturerManni and Cannon
ModelPolyurethane Panel Line
ConditionUsed
Stock NumberRF-203
