1500 mm SpaTech Tension Leveling Stand: TLL-203

1500 mm SpaTech Tension Leveling Stand: TLL-203

orCall +1 (336) 597-2370

Description

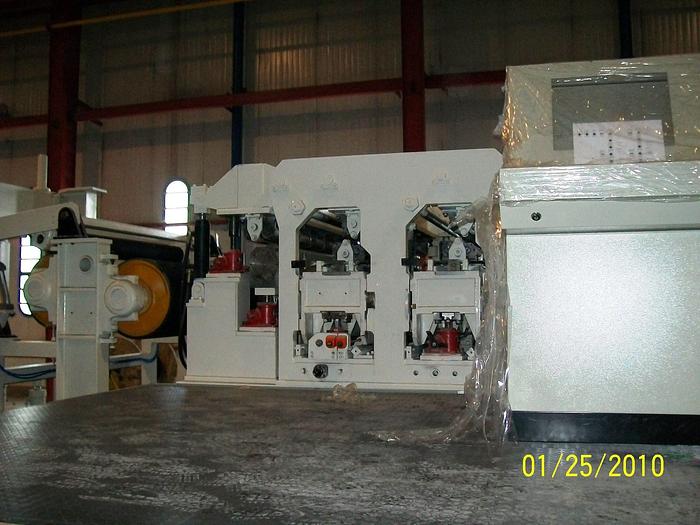

Used 1500 mm tension leveling "flex roll" stand for coated aluminum / very little use / very good condition Manufacture - SpaTech (UK) - new 2007 Strip Width: - 1500 mm max / 59" - 300 mm min / 12" Strip Thickness: - Aluminum = 0.55 - 2.00 mm / .022 - .078" - Steel = 0.35 - 1.35 mm / .014 - .053" Sheet Length: - 400-4000 mm / 15.7" - 157" Entry Coil Size - ID = 508 mm / 20" - OD = 1600 mm / 63" max - Weight = 10,000 kg / 22,046 lbs max Material: - Coated steel and aluminum Yield Strengths: - Aluminum = 120 - 250 N/mm2 - Steel = 250 - 340 N/mm2 Line Speed: - 76 mpm / 250 fpm max - 20 mpm / 65 fpm min (jog speed) Maximum Strip Tensions: - Entry side of Entry Bridle = 3250 kg / 1500 psi - Exit side of Exit Bridle = 7370 kg / 5000 psi - Aluminum = 6115 kg / 2800 psi Electrics: - 380 V / 3 ph / 50 Hz Entry Bridle: - Roll 1 = 40 kW, 1700/1900 rpm, DC motor - Roll 2 = 80 kW, 1700/1900 rpm, DC motor - EC Brake - Snubber Roll Flex-Roll Stand - Quick-Open Roll Actuation = double solenoid hydraulic valve - No 1 Roll mesh adjust = manual by screwjack - No 2 Roll mesh adjust = manual by screwjack - No 1 Decurving Roll adjust = 0.55 kW AC geared motor - No 2 Decurving Roll adjust = 0.55 kW AC geared motor - No 1 Decurving Roll protection = proximity switches - No 2 Decurving Roll protection = proximity switches - Automatic Open Initiation = photo-electric sensor - Automatic Close Initiation = photo-electric sensor Exit Bridle - Roll 1 = 80 kW, 1700/1900 rpm, DC motor - Roll 2 = 40 kW, 1700/1900 rpm, DC motor - Roll 3 = 12 kW, 1700/1900 rpm, DC motor - Roll 4 = 20 kW, 1700/1900 rpm, DC motor - EC Brake - Snubber Roll

Specifications

ManufacturerSPATECH
ModelTension Leveling Stand
Year2007
ConditionUsed
Stock NumberTLL-203
TypeTension Leveling, Tension Leveling Stands
StatusFor Sale
Sheet Length- 400-4000 mm / 15.7" - 157"
Material- Coated steel and aluminum
Electrics- 380 V / 3 ph / 50 Hz
