52" Ingersoll Copper Slab Scalper: SC-020

52" Ingersoll Copper Slab Scalper: SC-020

orCall +1 (336) 597-2370

Description

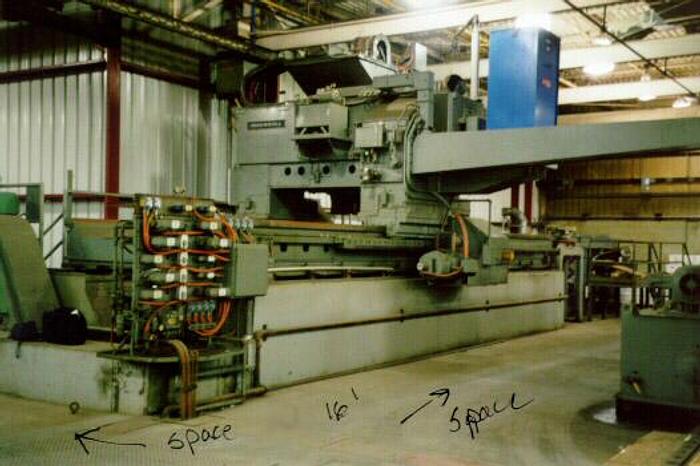

Used 52" Ingersoll Copper Slab Scalper: SC-020 / suitable for aluminum but previous use was beryllium copper slab Manufacturer: Ingersoll / 1983 Slab Capacity - Thickness: 2- 8" or 50.8 - 203.2 mm - Width: 26-52" or 660.4 - 1320 mm - Length: 18 ft max or 5488 mm - Weight: 10,000 lbs max or 4.5 mton Former Use: - Scalped beryllium copper slab where it removed .150" per pass Feed System - X-Axis: 10 - 300" per minute, with 244" of travel - Y-Axis: 5 - 20" per minute, with 68.5" of travel - Z-Axis: 100" per minute max, with 14" of travel Surface Finish Produced: 125 rms per minute Tolerance = +/- .015" Equipment Cutting Tools: Milling, 18" diam knives x 32 inserts Crop Saw: 30" diam blade Spindle Drive: 75hp AC, 1800rpm, 460/3/60 Electrical Controls: Included Coolant System: Included Chip Conveyor: Included Sold "as is, where is" EXW warehouse. from Phipps Co. equipment suppliers USA

Specifications

ManufacturerINGERSOLL
ModelAluminum Slab Scalper
Year1983
ConditionUsed
Stock NumberSC-020
TypeSlab Scalping, Slab Scalpers
StatusFor Sale
Former Use- Scalped beryllium copper slab where it removed .150" per pass
Surface Finish Produced125 rms per minute
Cutting ToolsMilling, 18" diam knives x 32 inserts
Crop Saw30" diam blade
Spindle Drive75hp AC, 1800rpm, 460/3/60
Electrical ControlsIncluded
Coolant SystemIncluded
Chip ConveyorIncluded
