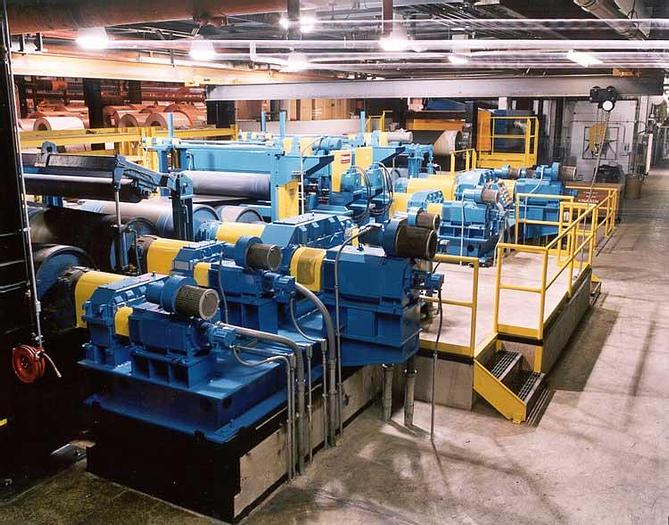

66" Stamco Tension Leveling Section: TLL-190

66" Stamco Tension Leveling Section: TLL-190

orCall +1 (336) 597-2370

Description

66" Stamco Tension Leveling Section: TLL-190 / entry bridle / flex-roll leveling section / exit bridle Manufacture: - Monarch-Stamco / new 1994 - Roll module rebuild 2007 Line Speed: 425 fpm max / 130 mpm Strip Thickness - Aluminum: .017 - .060" / 0.43 - 1.5 mm - Carbon Steel: .010 - .065" / 0.25 - 1.65 mm Incoming Strip Width: 17.5 - 66.0" / 444.5 - 1676.4 mm Hand of Line: Right to left Thickness Width Yield Strength Theoretical Maximum (inches) (inches) (psi) Max Elongation (%) .008 to .060 20 to 61 50,000 2 .008 to .030 20 to 61 60,000 2 .030 to .060 20 to 61 60,000 1 .008 to .030 20 to 61 70,000 1 .030 to .060 20 to 48 70,000 1/2 .008 to .015 20 to 61 80,000 1 .015 to .030 20 to 56 80,000 1/2 .030 to .060 20 to 42 80,000 1/2 .008 to .015 20 to 60 100,000 1 .015 to .030 20 to 48 100,000 1/2 .008 to .015 20 to 60 120,000 1/2 .015 to .030 20 to 36 120,000 1/2 Entry 4-Roll Bridle: Roll Size: 31.25" diam x 72" face #1 - 30 HP @ 1750/2500 RPM #2 - 60 HP @ 1750/2500 RPM #3 - 125 HP @ 1750/2500 RPM #4 - 250 HP @ 1750/2500 RPM Flex-Roll Section - Design: 5-roll cassettes (2 over 3) - Work Roll Size: 1.5" diam x 78" face (38.1 mm x 1981 mm) - Transverse Bow Correction Rolls (at each end, adjustable) Exit 4-Roll Bridle: Roll Size: 31.25" diam x 72" face #5 - 250 HP @ 1750/2500 RPM #6 - 125 HP @1750/2500 RPM #7 - 60 HP @ 1750/2500 RPM #8 - 30 HP @ 1750/2500 RPM Dimensions: Total Width of Bridles 72" Wide Total Width of Tension Leveler Work Rolls 78" Wide Sold "as is, where is" off foundation, USA Previous use: Coil coating line.

Specifications

ManufacturerSTAMCO
ModelTension Leveling Section
Year1994
ConditionUsed
Stock NumberTLL-190
