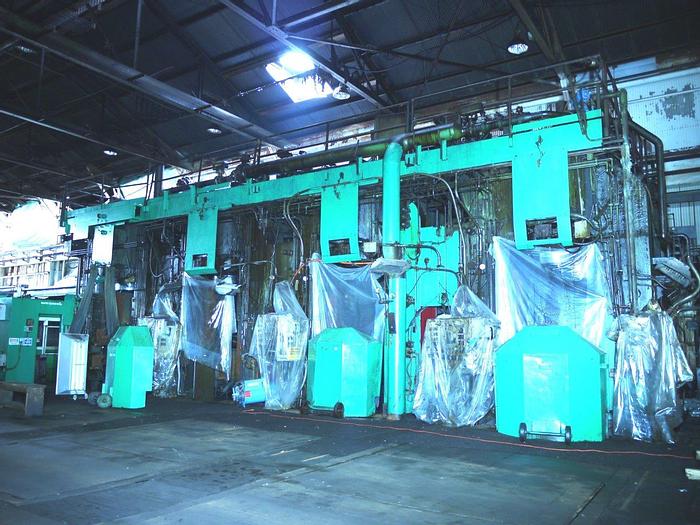

60" Steel 4-Stand Tandem Cold Rolling Mill: RM-387

60" Steel 4-Stand Tandem Cold Rolling Mill: RM-387

orCall +1 (336) 597-2370

Description

60" Steel 4-Stand Tandem Cold Rolling Mill: RM-387 Manufacture: - Bliss / new 1954 - Many upgrades thru the years - Last operated in 2011 Material: Carbon steel Line Speed: 3100 fpm max / 945 mpm Strip Width: 24 - 60" / 610 - 1524 mm Strip Thickness: - Entry - .185" max / 4.7 mm - Exit - .015 min / 0.38 mm Coil Size: - ID - 24" / 610 mm - OD - 72" / 1828 mm - Weight - 60,000 lbs max / 27.2 mtons Roll Count: Work Rolls = - 53 bare work rolls - 22 work rolls in chocks - Chock count = 44 Backup rolls = - 21 bare backup rolls - 18 backup rolls are in chocks - Chock count = 36 Equipment: Uncoiler Mill - Work Rolls: 20" diameter (508 mm) x 66" face (1676 mm) - Back-up Rolls: 53" diameter (1346 mm) x 66" face (1676 mm) - Mill Drives: Stand 1: 2 x 1500 hp DC Stands 2-4: 2 x 2250 hp DC - Gap Control: Hydraulic AGC on all 4 stands / System new in 1990 - Shape Control System: ABB, new in 2006 / Work roll bending & crowning - Coolant System: Included with filter - Work Roll Change Sled: Included Recoiler: 2 x 600 hp DC motors Major Spares: Many rolls (see specs above ... many new rolls (never used) / Chocks, bearings, etc. Roll Shop: Grinding and shot blast equipment available at additional cost. Sold "as is, where is" EXW on seller's foundation from Phipps Co. equipment suppliers USA

Specifications

ManufacturerBLISS
ModelTandem Cold Mill
Year1954
ConditionUsed
Stock NumberRM-387
