Description

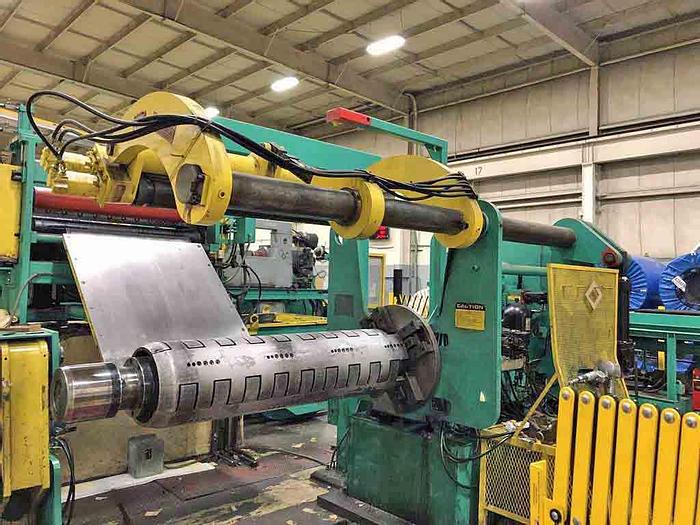

Very nice, complete 60" line with 3 slitter heads. Now dismantled and stored in the Midwestern USA.


Manufacture:

 - Stamco


Strip Width:

 - 60" / 1525mm

 - 66" / 1675mm maximum entry width


Strip Thickness:

 - .012-.185" / 0.30 - 4.7mm


Coil Size:

 - I.D. - 20-24" / 508-610mm

 - O.D. - 72" / 1830mm

 - Weight - 60,000 lbs / 27,215 kg


Line Speed:

 - Low: 350 fpm / 106 mpm

 - High: 825 fpm / 250 mpm


Line Direction:

 - Right to Left


EQUIPMENT

-Entry Turnstile:

 4 C-Hook Type Arms

 Hydraulic Motor Powered Rotation


-Entry Coil Car: Chicago

 Above Floor Design

 Self-Contained Hydraulic


-Mandrel Uncoiler: Chicago

 4 Leaf Pumpkin Tooth Design

 20" - 24" // 508 - 610mm ID with Hydraulic Expansion

 Attached Full Width Holddown Rolls - Powered

 Eaton Water Cooled Brake

 Hydraulic Sliding Base

 AC Motor Threading Drive

 Outboard Support Arm


-Automatic Edge Control:


-Entry Unit:

 60" // 1525mm Wide Peeler Table

 Driven Pinch Rolls, 66" W x 8" Dia. // 1675 x 204mm

 Neoprene Covered

 Crop Shear - Hydraulic Up Cut Design


-Slitter Head Injector System:

 3 Slitter Heads w/8.00" // 204mm Dia. Arbors

 Entry Side Guides

 Eccentric Arbor Adjustment

 Powered Outboard Housing Retraction

 DC Drive Motor

 Several Sets of Shimless Tooling


-Looping Pit:

 Pit Carry Over Table

 Looping Pit Doubler


-Scrap Baller:


-Synchrowind Tension Stand:

 Combination Drag Pad and Roll Type

 Entry Separator Tooling Bar

 Drag Pads

 Synchrowind Rolls

 Exit Crop Shear

 Exit Passline Roll


-Recoiler:

 20" // 508mm Dia. Drum,

 Rubber Sleeves for 24" // 610mm Dia.

 Hydraulic Grip & Expand

 Hydraulic Pushoff

 Horsburgh & Scott Reducer

 100hp DC Drive Motor 650-2500rpm w/Blower

 2 speed H&S reducer 16:1 and 40:1 ratios

 Outboard Support Arm


-Exit Coil Car:

 Above Floor Design

 66" // 1675mm Wide Deck

 Overarm Holddown with Micarta Fingers for Width Adjust

 Self-Contained Hydraulics


-Exit Turnstile:

 4 C-Hook Type Arms

 66" // 1675mm Arm Length

 Hydraulic Pushoff

 Hydraulic Motor Powered Rotation


-Operator Control Panels: included


Specifications

ManufacturerSTAMCO
Model60" Slitting Line
Year1996
ConditionUsed
Stock NumberS-297
TypeSlitting, Slitting Lines
StatusFor Sale
Manufacture- Stamco
Strip Thickness- .012-.185" / 0.30 - 4.7mm
Line Direction- Right to Left
