72" x 10.00" x 60,000lb Cincinnati Slitting Line: S-296

72" x 10.00" x 60,000lb Cincinnati Slitting Line: S-296

orCall +1 (336) 597-2370

Description

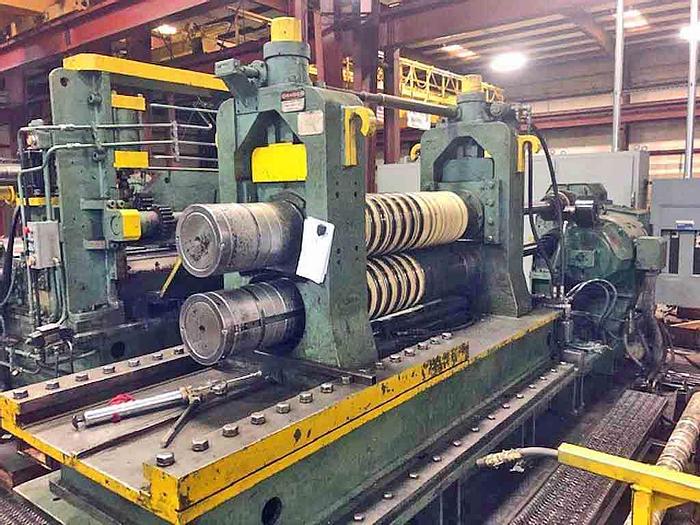

Very nice 72" Slitting Line. Turnstile to turnstile. Updated controls, recoiler, knives, etc. Installed and under power (Nov 2020). Manufacture: - Cincinnati Materials: - HRS, CRS, Galv. Strip Width: - 12" - 72" Strip Thickness: - 0.024 - 0.375" Max. Shear: 45,000 PSI Max. Yield: 45,000 PSI Coil Size: - ID Entry - 20" & 24" - ID Exit - 20" & 24" - OD (max) - 72" - Weight - 60,000 lbs max Line Direction: - Left to Right Mode of Operation: - Pull-thru/ Slitter Assist Approx. Line Speeds: - 100/200/300 fpm at 24" diam bare drum speed Required Floor Space: 50' x 90' (approx.) -Entry Turnstile: Three (3) arms x 60,000# per arm Powered Rotation Slotted for C-Hooks -Entry Coil Car: Mast Type Floor Mounted Self-contained Hydraulic Unit Powered Lift and Traverse Cable Reel -Uncoiler: Single Mandrel Type Powered Expansion Hold-down with Powered Snubber Roll Wichita Water Cooled Brake with Cooler Slide Base Feed-up Drive -Entry Unit: Extending Blade Type Peeler Entry Pass-line Roll Manual Side Guides Powered Entry Pinch Rolls Crop Shear- Down-cut Type Carry-over Table -Two (2) Slitter Heads: Crane Removable Type 10" Diameter Arbors Powered Outboard Retraction Powered Top Arbor Adjust "Over the Arbor" design to slit 36" through 72" widths -Stationary Slitter Drive Base: 75 HP DC Motor (650/1950 RPM) H & S Speed Reducer (27.43:1 Ratio) Powered Head Lock -Pit Section: Mounted to Tension Stand Entry Pass-line Roll Carry-over Table -Tension Stand: Coil Pro, New in 2000 Drag Type Clam Shell Opening Separator Arm on Slide-out Frame Internal Deflector Rolls Exit Crop Shear- Down-cut Type Recoiler Feed Table -Two (2) Scrap Winders: Automatic Scrap Dump Level Wind -Recoiler: Chicago Recoiler Drum, New in 2008 20" Dia. Drum Hydraulic Expansion and Gripper Hydraulic Push-off Internal Gear Reduction: approx. 50:1 100 HP DC Motor (650/1950 RPM) Drive-all Reducer with three (3) speeds Ratios - 1:1, 1.562:1 and 3:1 Bolt-on Risers for 24" ID -Overarm Separator Assembly: Floor Mounted Banding Assist Arm -Exit Coil Car: Mast Type Floor Mounted Self-contained Hydraulic Unit Powered Lift and Traverse Narrow Coil Retaining Tracks Cable Reel -Entry Turnstile: Two (2) arms x 60,000# per arm Powered Rotation Powered Push-off Slotted for C-Hooks -Electrical Controls: New in 2006 Main Operators Control Panel with Touch Screen Control AC/DC Control Cabinets Eurotherm 590+ DC Drives -Hydraulic System: -Tooling: Shimless Multiple sets of Tooling Knives 1" Knives new in 2019 (never used) Steel Spacers Rubbers Separator Tooling -New AC/DC Controls were added in 2006 at a cost of around $125,000. -New Chicago Recoiler Drum was added in 2008 at a cost of around $150,000. -Line is Installed

Specifications

ManufacturerCINCINNATI
ModelSlitting Line
ConditionUsed
Stock NumberS-296
TypeSlitting, Slitting Lines
StatusFor Sale
Manufacture- Cincinnati
Materials- HRS, CRS, Galv.
Strip Width- 12" - 72"
Strip Thickness- 0.024 - 0.375"
Max. Shear45,000 PSI
Max. Yield45,000 PSI
Line Direction- Left to Right
Mode of Operation- Pull-thru/ Slitter Assist
Approx. Line Speeds- 100/200/300 fpm at 24" diam bare drum speed
Required Floor Space50' x 90' (approx.)
