60" Cincinnati-Forte 5" & 7" Slitting Line: S-292

60" Cincinnati-Forte 5" & 7" Slitting Line: S-292

orCall +1 (336) 597-2370

Description

60" Cincinnati-Forte 5" & 7" Slitting Line: S-292 / very good condition / ready to ship


Manufacture

 - Cincinnati - Forte

 - new 1969 - continuous maintenance and upgrades - decommissioned late 2017

 - Mar 2020 = reinstalled to show potential buyers how good this line is.


Strip Thickness

 - .010 - .135" typical (0.25 - 3.43 mm)


Strip Width

 - 12 - 60" max (305 - 1524 mm)


Coil Size

 - See Uncoiler and Recoiler descriptions below


Line Speed

 - 600 fpm bare drum max (183 mpm)


Hand of Line

 - Left to right


Material

 - Cold rolled steel, CRCQ

 - Galvanized steel

 - Aluminum

 - Stainless

 - Painted


EQUIPMENT:


Entry Turnstile

 - 4-arm

 - Powered rotation

 - With c-hook slots


Entry Coil Car

 - 25,000 lb capacity

 - On-floor, side mast type


Uncoiler

 - 60" mandrel face with powered gripper

 - 16" ID, 20" with plates

 - 24,000 lb capacity

 - Powered outboard bearing

 - Sliding base

 - Feed-up drive, snubber roll, Wichita clutch brake


Powered Entry Peeler with Guides


PVC Film Applicator


Rotary Crop Shear

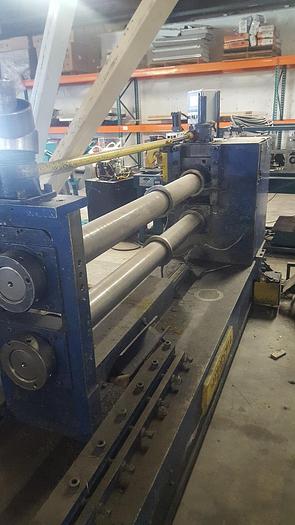

Slitter

 - Powered feed rolls

 - 75 hp AC vari-freq drive and controls

 - 62" head width

 - 1 x 5" diameter arbor injector head

 - 1 x 7" diameter arbor injector head

 - Power traverse

 - Power on-board adjust

 - Power top roll adjust


Tension Stand

 - Drag type

 - Two 14" diameter tension rolls

 - With strip separators


Powered Crossover Table (over looping pit)


Inspection Table


Recoiler

 - 60" mandrel face with powered gripper

 - 16" ID, plus 20" & 24"

 - 20,000 lbs capacity

 - 150 hp DC drive, 2 speed gearbox

 - Hydraulic grip, push-off, and separator


Exit Coil Car

 - Floor mounted

 - 20,000 lbs capacity


Exit Turnstile

 - 2-arm

 - Powered rotation

 - C-hook slots


Controls and Drives

 - Complete


Tooling

 - Numerous items for both heads

 - All spares and misc. parts included


Electrics - 480 volt / 3 phase / 60 Hz

Manufacture - Cincinnati - Forte - new 1969 - continuous maintenance and upgrades - decommissioned late 2017 - Mar 2020 = reinstalled to show potential buyers how good this line is. Strip Thickness - .010 - .135" typical (0.25 - 3.43 mm) Strip Width - 12 - 60" max (305 - 1524 mm) Coil Size - See Uncoiler and Recoiler descriptions below Line Speed - 600 fpm bare drum max (183 mpm) Hand of Line - Left to right Material - Cold rolled steel, CRCQ - Galvanized steel - Aluminum - Stainless - Painted Entry Turnstile - 4-arm - Powered rotation - With c-hook slots Entry Coil Car - 25,000 lb capacity - On-floor, side mast type Uncoiler - 60" mandrel face with powered gripper - 16" ID, 20" with plates - 24,000 lb capacity - Powered outboard bearing - Sliding base - Feed-up drive, snubber roll, Wichita clutch brake Powered Entry Peeler with Guides PVC Film Applicator Rotary Crop Shear Slitter - Powered feed rolls - 75 hp AC vari-freq drive and controls - 62" head width - 1 x 5" diameter arbor injector head - 1 x 7" diameter arbor injector head - Power traverse - Power on-board adjust - Power top roll adjust Tension Stand - Drag type - Two 14" diameter tension rolls - With strip separators Powered Crossover Table (over looping pit) Inspection Table Recoiler - 60" mandrel face with powered gripper - 16" ID, plus 20" & 24" - 20,000 lbs capacity - 150 hp DC drive, 2 speed gearbox - Hydraulic grip, push-off, and separator Exit Coil Car - Floor mounted - 20,000 lbs capacity Exit Turnstile - 2-arm - Powered rotation - C-hook slots Controls and Drives - Complete Tooling - Numerous items for both heads - Alll spares and misc parts included Electrics - 480 volt / 3 phase / 60 Hz Sold "as is, where is" EXW.

Specifications

ManufacturerCINCINNATI
ModelSlitting Line
ConditionUsed
Stock NumberS-292
TypeSlitting, Slitting Lines
StatusFor Sale
