Two (2) 1550 mm Steel/Aluminum Slitting Lines: S-293

Two (2) 1550 mm Steel/Aluminum Slitting Lines: S-293

orCall +1 (336) 597-2370

Description

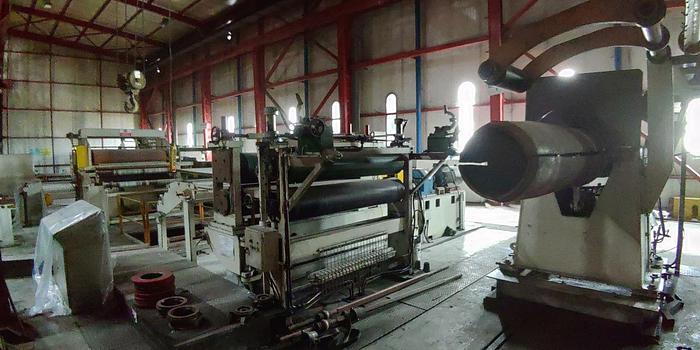

Two (2) 1550 mm Steel/Aluminum Slitting Lines: S-293 / Line 1 is installed and operational / Line 2 is new/never used in crates / All software has been kept perfect Manufacture - SpaTech (UK) - New in 1997 Strip Width - 1550 mm max (61") - 600 mm min (23.6") Strip Thickness - 2.0 mm max entry (.080") - 0.35 mm min exit (.014") Line Direction - Right to Left Line Speed - 200 mpm max (656 fpm) Coil Size - ID: 508 mm entry, 406, 508 mm exit (16", 20") - OD: 1600 mm (63") - Weight: 10,000 kg max (22,046 lbs) Electrics: - 380 V / 3 ph / 50 Hz Entry Coil Car - Floor cradle type - Hydraulic lift Uncoiler - Mandrel type - Hydraulic expansion - Pneumatic disk brake - Traversing base - Snubber roll Entry Pinch Rolls Slitter - 55 kW AC motor, 1500 rpm - Arbor diameter = 190 mm / 7.5" - Tooling included Scrap Winder Looping Pit Tension Stand - Pneumatic roll speed/brake control - Hydraulic bottom roll open-close - Tachometer top roll drive references recoiler speed - Rolls = Pressure pads, cooling water Exit Shear - Hydraulic Feed Table - Hydraulic raise/lower Recoiler - 110 kW DC motor, 1500 rpm - Electro-magnetic brake - Hydraulic mandrel expand and collapse - Hydraulic push-off - Overarm separator Exit Coil Car - Hydraulic lift and traverse

Specifications

ManufacturerSPATECH
ModelSlitting Line
Year1997
ConditionUsed
Stock NumberS-293
TypeSlitting, Slitting Lines
StatusFor Sale
Electrics- 380 V / 3 ph / 50 Hz
