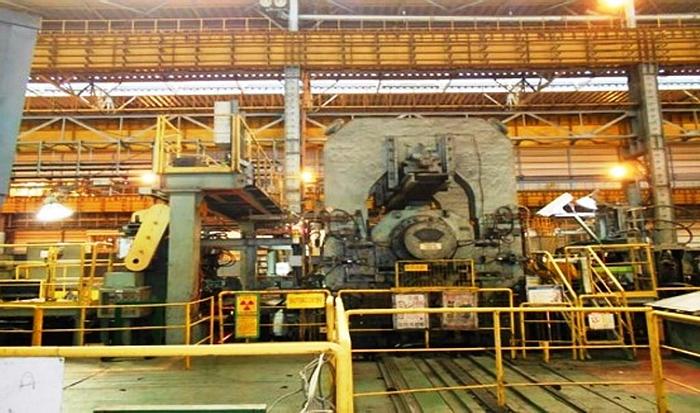

1350 mm Steel Skin Pass 4-Hi Cold Rolling Mill: RM-448

1350 mm Steel Skin Pass 4-Hi Cold Rolling Mill: RM-448

orCall +1 (336) 597-2370

Description

Used 1350 mm Steel Skin Pass 4-Hi Cold Rolling Mill: RM-448


Manufacture:

- Hitachi

- New 1996


Material: Carbon steel, Low alloy steel


Strip Width:

- 900 - 1350 mm (35.4 - 53.1")


Strip Thickness:

- 6.4 mm max entry (.252")

- 1.8 mm min exit (.071")


Coil Size

- ID - 762 mm (30")

- OD - 1950 mm max (76.8")

- Weight - 24 mtons (53,000 lbs)


Tensile Strength: 55 kg/mm2


Line speed:

- 1.8 mm - 3.2 mm thickness = 400 mpm max. (1312 fpm)

- 3.2 mm - 6.4 mm = 270 mpm max. (886 fpm)

- Threading speed = 30 mpm (98 fpm)


Roll size:

- Work rolls = 630/560 mm diam x 1470 mm face (24.8"/22.0" x 57.9")

- Back-up rolls = 1200 mm diam x 1420 mm face (47.2" x 55.9")


Motors:

- Main mill = 920 kW AC

- Uncoiler = 640 kW AC

- Tension reel = 870 kW AC


Passline Height = 920 mm above floor level (36.2")


 --- MORE DETAIL COMING ---

Manufacture: - Hitachi - New 1996 Material: Carbon steel, Low alloy steel Strip Width: - 900 - 1350 mm (35.4 - 53.1") Strip Thickness: - 6.4 mm max entry (.252") - 1.8 mm min exit (.071") Coil Size - ID - 762 mm (30") - OD - 1950 mm max (76.8") - Weight - 24 mtons (53,000 lbs) Tensile Strength: 55 kg/mm2 Line speed: - 1.8 mm - 3.2 mm thickness = 400 mpm max. (1312 fpm) - 3.2 mm - 6.4 mm = 270 mpm max. (886 fpm) - Threading speed = 30 mpm (98 fpm) Roll size: - Work rolls = 630/560 mm diam x 1470 mm face (24.8"/22.0" x 57.9") - Back-up rolls = 1200 mm diam x 1420 mm face (47.2" x 55.9") Motors: - Main mill = 920 kW AC - Uncoiler = 640 kW AC - Tension reel = 870 kW AC Passline Height = 920 mm above floor level (36.2") --- MORE DETAIL COMING ---

Specifications

ManufacturerHITACHI
ModelSteel Skin Pass Mill
Year1996
ConditionUsed
Stock NumberRM-448
TypeRolling Mills
StatusFor Sale
MaterialCarbon steel, Low alloy steel
Strip Width- 900 - 1350 mm (35.4 - 53.1")
Tensile Strength55 kg/mm2
