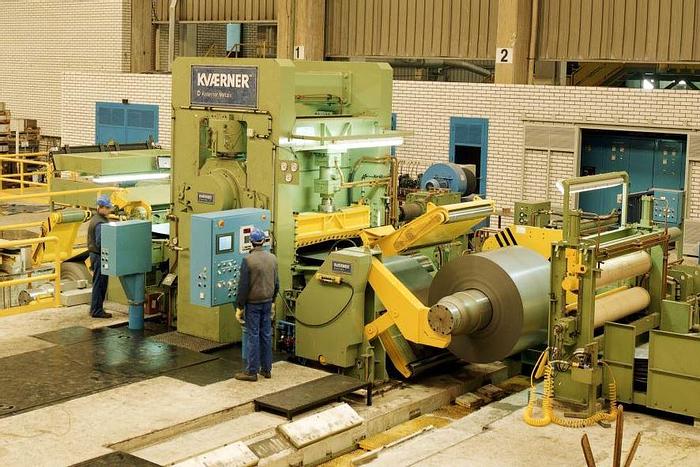

1500mm Cosim Cold Rolling Mill: RM-441

1500mm Cosim Cold Rolling Mill: RM-441

orCall +1 (336) 597-2370

Description

1500mm Cosim Cold Rolling Mill: RM-441 / COMPLETE STEEL MILL / EXCELLENT CONDITION


Manufacture:

 - Kvaerner Metals (became Cosim and VAI)

 - New in 1999


Strip Width:

 - Maximum: 1500 mm max (60")(at 0.08% C) ... 750 mm (29.5")(at 0.80% C)

 - Minimum: 500 mm (19.7")


Strip Thickness:

 - Max entry: 6.00 mm (.236")(4 mm at 0.80% C)

 - Min exit: 0.2 mm (.008")


Line Speed:

 - 0-150-300 mpm (0-492-984 fpm)


Material: Cold Rolled Steel


Coil Size:

 - ID: 508 mm (20")

 - OD: 2000 mm (78.7")

 - Weight: 25 mtons (55,000 lbs)


EQUIPMENT

Uncoiler:

 - Expanding mandrel type (508 mm diameter nominal)

 - Drive: 390 kW motor / 0-430-1690 rpm / gearbox ratio 1:18 and 1:9

 - Tension: at low speed = 15,000 to 1,500 kg / at high speed = 7,500 to 750 kg


Mill:

 - Work Roll Diameter: 400/370 mm (15.7"/14.6")

 - Work Roll Face: 1650 mm (65")

 - Backup Roll Diameter: 850/800 mm (33.5"/31.5")

 - Backup Roll Face: 1650 mm (65")

 - Mill Speed: 0-150-300 mpm

 - Roll Force: 450 mtons

 - Drive: 570 kW motor / 0-750-1600 rpm / gearbox ration 1:6.28

 - Coolants System: 200 l/min

 - Thickness Gauge: Vollmer


Recoiler:

 - Expanding mandrel type (508 mm diameter nominal)

 - Drive: 390 kW motor / 0-430-1690 rpm / gearbox ratio 1:18 and 1:9

 - Tension: at low speed = 15,000 to 1,500 kg / at high speed = 7,500 to 750 kg


Complete mill with electrics, controls, hydraulics, coolant system, fire system, etc.

Sold "as is, where is" EXW installed on seller's foundation.


Specifications

ManufacturerCOSIM (VAI SPAIN)
ModelCold Rolling Mill
Year2000
ConditionUsed
Stock NumberRM-441
