60" x 216" Cincinnati Roll Grinder: RG-093

60" x 216" Cincinnati Roll Grinder: RG-093

orCall +1 (336) 597-2370

Description

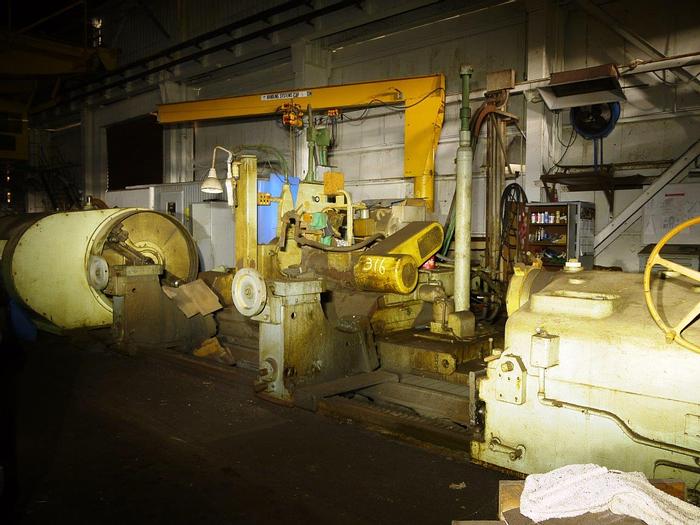

Used 60" x 216" Cincinnati Roll Grinder: RG-093 / steel mill backup roll grinder Manufacture: - Cincinnati Previous Use: - Ground backup rolls in a steel sheet mill Maximum Roll Size: - 60" diam x 216" length (1524 mm x 5486 mm) Headstock: - 30 hp - 300/1200 rpm DC motor - 6 - 21 rpm rotation speed Wheel Head: - 36" OD - 20" ID - 4" face max - 600-1200 rpm spindle speed - 30-400 hp DC drive Tailstock: - 1.0 hp motor Carriage: - 0.75-75.0"/min traverse speed - 1.5 hp, 23 -2300 rpm DC drive Control System: - 2.25" max roll taper (57.1 mm) - .500" max camber (112.7 mm) - Crown or concave Machine Dimensions: 47'5" L x 16'9" W x 5'1" H (14,563 mm L x 5105 mm W x 1549 mm H) Sold "as is, where is" EXW on foundation, not in operation. from Phipps Co. equipment suppliers USA

Specifications

ManufacturerCINCINNATI
ModelRoll Grinder
ConditionUsed
Stock NumberRG-093
