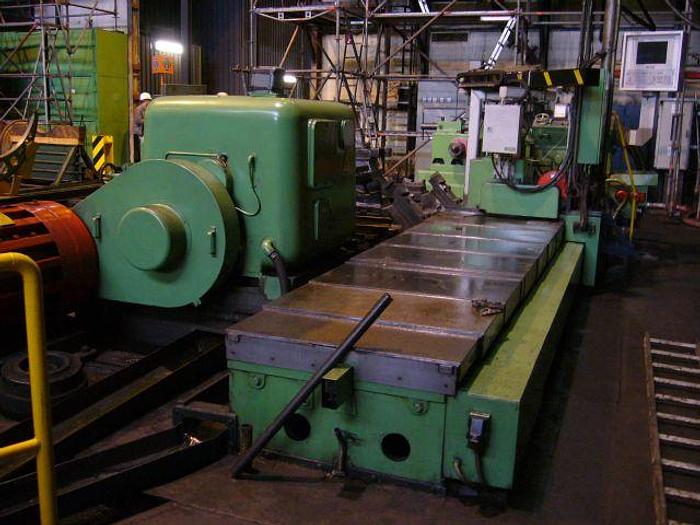

55" x 196" Naxos-Union Roll Grinder: RG-097

55" x 196" Naxos-Union Roll Grinder: RG-097

orCall +1 (336) 597-2370

Description

55" x 196" Naxos-Union Roll Grinder: RG-097 / Model WT 140/5000 / steel mill roll grinder Manufacture: - Naxos-Union - Model WT 140/5000 - New in 1974 Work Piece Diameter: - 40 - 1400 mm (1.57 - 55") Work Piece Length: - 5000 mm max (196") Work Piece Weight: - 10 mtons (22,000 lbs) between centers - 20 mtons (44,000 lbs) at the steady rests Grinding Wheel: - 750 mm max OD (29.5") - 600 mm min OD (23.6") - 305 mm wide (12") - 80 mm center bore (3.15") Number of Steady Rests: - Two (2) Work Piece Drive: - 22 kW Speed: - 7 - 49 rpm Grinding Slide Drive: - 22 kW Grinding Slide Speed: - 54 - 1300 mm per minute Crowning: - Interchangeable wheels - Head and Tail Stock Movements: Manual Sold "as is, where" EXW off foundation. from Phipps Co. equipment suppliers USA

Specifications

ManufacturerNAXOS-UNION
ModelRoll Grinder
ConditionUsed
Stock NumberRG-097
TypeRoll Grinding, Roll Grinders
StatusFor Sale
Work Piece Diameter- 40 - 1400 mm (1.57 - 55")
Work Piece Length- 5000 mm max (196")
Number of Steady Rests- Two (2)
Work Piece Drive- 22 kW
Speed- 7 - 49 rpm
Grinding Slide Drive- 22 kW
Grinding Slide Speed- 54 - 1300 mm per minute
