Two (2) Like-New Discontinuous Curved and Flat Polystyrene Sandwich Panel Presses: RF-201

Two (2) Like-New Discontinuous Curved and Flat Polystyrene Sandwich Panel Presses: RF-201

orCall +1 (336) 597-2370

Description

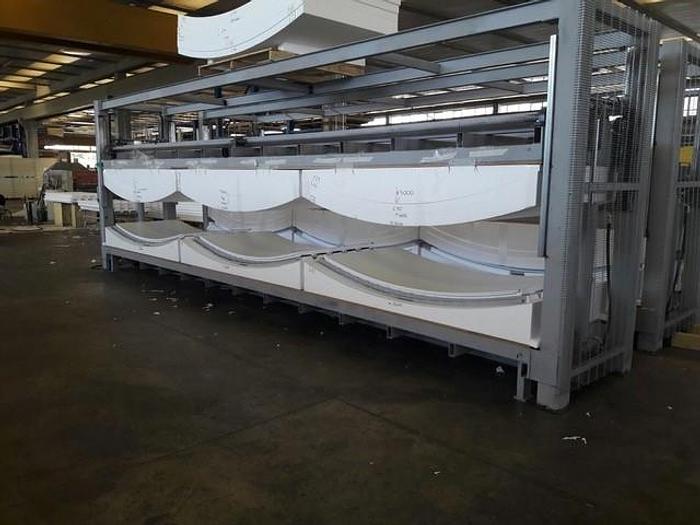

Two (2) Like-New Discontinuous Curved and Flat Polystyrene Sandwich Panel Presses: RF-201 Manufacture - Italy - New 2018 - Very few hours of operation Purpose: - The presses are designed to make curved architectural panels using counter-molds meeting various specified radii. - Foam = polystyrene or polystyrol. - Built new in 2018 and they have very few hours of operation - Press dims = 1200 mm wide x 7000 mm long x 800 mm high - The presses can also make "normal" flat panels by inserting 600 mm high polystyrene blocks covered with a multi-layer slab at the top. - Skin handling part of the presses use hot and cold rolled S275 steel. Assembled on site as per the drawings in our possession, in compliance with current regulations. Structure: - Dimensions = 1200 mm W x 7600 mm L x 2500 mm H - Two (2) arches for each one composed as follows: 2 pillars in structural tubular 150 mm where the modules of the racks are anchored for the co-planar sliding of the pressing plane. - Two (2) upper connection crossbeams made of 120 mm IPE boxed iron - Two (2) lower connecting crossbeams in structural tubular iron at 160 mm x 80 mm Upper pressing table: - Two (2) longitudinal beams made of structural tubular steel at 160 x 80 mm - Connection for hydraulic cylinders to the 150 mm x 100 mm iron press table - 100 mm x 50 mm tubes, 200 mm pitch for cross-connection to the longitudinal tubes - 100 mm x 50 mm longitudinal tubes connected to the crossbeams with 50 mm x 30 mm tubular "crosses" - Transmission shafts, drawn lengthwise diameter 60, arranged on the pressing plane through complete bearing supports in its elements of plates and counter-plates with the relative toothed pinions that slide on the rack rods mounted on the columns of the arches. Lower table: - One (1) longitudinal beam made of tubular steel 180 mm x 80 mm - 100 x 50 mm tubes, 200 mm pitch for cross-connection to the longitudinal beam - Longitudinal 100 mm x 50 mm tubular steel connected to the crossbeams - Perimeter frame = flat steel tubing at 200 mm x 10 mm Hydraulic system: - Four (4) double-acting 80/50 x 800 mm hydraulic cylinders complete with articulated coupling - One (1) central OG75 / KW7.5- 4P / 12 - 30 - 100 composed of: tank 75 l, electric motor Kw.S400 / 690 complete with lantern and elastic coupling, pump casing 30 l / minute complete with fittings , plate upright complete with three double-acting solenoid valves with relative pressure relief valves, filter on the return of the system to discharge. Pressure switches to set the desired pressure, complete with pressure gauge. - Piping and fittings made of high pressure hose. Electrical system: - Electromechanical panel for full press control complete with push-button panels on the machine and connections to the various components - The control desk will be equipped with a general switch, a start-stop switch, an up-down switch with timer to adjust the duration of the pressing, pressure switches to control hydraulic pressure inside the circuit, emergency stop buttons with preventive safety measures built into the press. Also, safety barriers are included for installation around the presses. Sold "as is", where is" EXW on foundation.

Specifications

ManufacturerItalian Manufactured
ModelPolystyrene Sandwich Panel Presses
Year2018
ConditionUsed
Stock NumberRF-201
TypeRoll Forming/Foam Panel, Polyurethane Sandwich Panel Lines
StatusFor Sale
