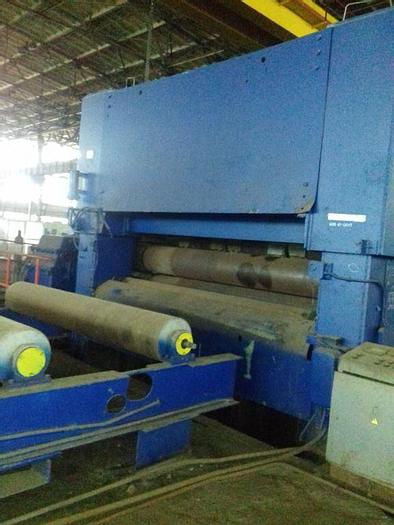

3050mm SKET Plate Leveler: M-329

3050mm SKET Plate Leveler: M-329

orCall +1 (336) 597-2370

Description

USED ... VERY GOOD CONDITION ... 3200 mm X 40 mm MAX PLATE SIZE LEVELER; M-329 Manufacture: - SKET (Germany) - Model - UBR 40x3150-7/12 Plate Width: - Maximum = 3200 mm (126") - Nominal = 3050 mm (120") Plate Thickness: - Maximum = 40 mm (1.57") - Minimum = 12 mm (0.47") Max. material speed: - 12 mpm (39 fpm) Work rolls: - Seven (7) rolls at 340 mm (13.4") diameter Backup rolls: - Five (5) rolls at 340 mm (13.4") diameter Support rolls: - Fifteen (15) rolls at 334 mm (13.15") Feed and Eccentric rolls: - 380 mm (15.2") diameter Electrical motor: 132 kW Size: - Footprint = 3657mm L x 5486mm W x 3048mm H - Total weight: 105 mtons

Specifications

ManufacturerSKET
ModelUBR 40X3150-7/12
ConditionUsed
Stock NumberM-329
TypeMiscellaneous, Plate/Sheet Levelers
StatusFor Sale
Max. material speed- 12 mpm (39 fpm)
Work rolls- Seven (7) rolls at 340 mm (13.4") diameter
Backup rolls- Five (5) rolls at 340 mm (13.4") diameter
Support rolls- Fifteen (15) rolls at 334 mm (13.15")
Feed and Eccentric rolls- 380 mm (15.2") diameter
Electrical motor132 kW
