850 mm Kyongil Foil Doubling Machine: FM-090

850 mm Kyongil Foil Doubling Machine: FM-090

orCall +1 (336) 597-2370

Description

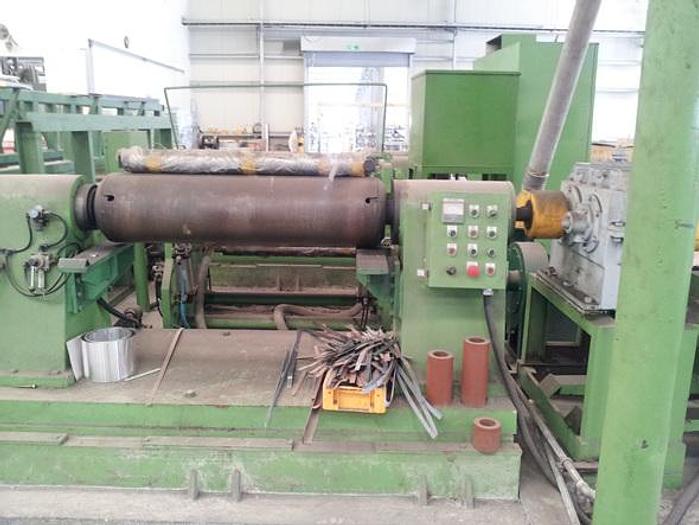

850 mm Kyongil Foil Doubling Machine: FM-090 THE PRICE QUOTED IN THIS QUOTE IS FOR A PACKAGE OF 850mm EQUIPMENT = FM-091 MILL + FM-090 DOUBLER + FS-108 SEPARATOR. IF YOU ONLY WANT THE DOUBLER, PLEASE CONTACT US. Manufacture - Kyongil (Korean) / new 2003 Material - Aluminum foil, full hard temper Web Width - 880 mm max (34.6") Web Thickness - Mother Coils (Incoming): 0.35 mm max (.0138") - Exit: 0.014 mm max doubled (.00055" doubled) Line Speed - 400 mpm max (1312 fpm) Coil Size - Weight: 2500 kg max ( 5500 lbs) - Spools: 300 mm diam x 1130 mm face (11.8" diam x 44.5") - Coil OD: 1200 mm max (47.2") Equipment - Double Uncoilers: Cone type / 11kW - 380V - 550/1750rpm - Doubler - Recoiler: Cone type / 22kW - 380V - 600/1750rpm Sold "as is, where is" installed, not under power.

Specifications

ManufacturerKYONGIL (KOREA)
ModelAluminum Foil Doubling Machine
Year2003
ConditionUsed
Stock NumberFM-090
TypeFoil Mills, Foil Doubling
StatusFor Sale
