5500 ton Wean-United Copper Extrusion Press: EX-489

Sold

5500 ton Wean-United Copper Extrusion Press: EX-489

Description

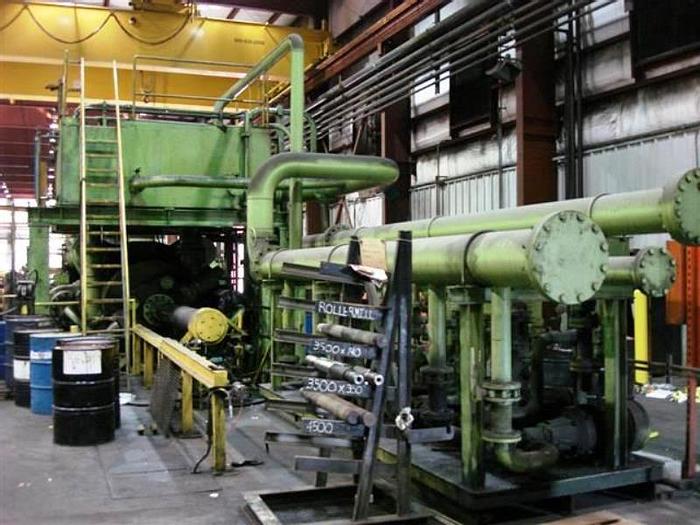

Used 5500 USton Wean-United Copper Extrusion Press: EX-489 / 13.7" billet diameter / Horizontal, 4-Column, Oil Hydraulic Design / With Piercer, Hydraulics, Billet Heater, and Tube Saw / Still installed and under power Manufacture: - Wean United - New 1981 - Hydraulics upgrades in 2000 - 5000 USton pressure - Billet Size: - 13.7" diameter (348 mm) - 29.5" max length (749 mm) - Copper - Horizontal, 4-Column, Oil Hydraulic Design - With Piercer, Hydraulics, Billet heater, and Tube saw Billet Heater: - Billet Conveyor System - Furnace - gas fired, blower fans, exhaust system, hydraulic load bar Hydraulic System: - Two Ajax Magnethermic units new in 2000 - Model Unit A, S/N H-2P150-C - Model Unit B, S/N H-2P150 Induction Furnaces: 1,400 kW capacity / 60-second cycle Transfer conveyor Cutler-Hammer PLC - Control panel - 52 GPM water flow - Input = 550/605 volts, 1792-KVA, 2,175 maximum amperes - Output = 1,250 volts, 3,313-KVA, 2,650 maximum amperes, 1600 kW Wean-United Extrusion Press: - S/N 37866-13, Equipment # 8515 - 5,000 ton capacity Oil hydraulic - 507 ton advance piercer - 320 ton return piercer - 800 ton advance slide rams - 320 ton return slide rams - 75" main and side rams stroke - 41" piercer ram stroke - 18" container shifting rams stroke - 13" per second rapid advance main ram speed - 11.8" per second return main ram speed - 2" per second +/- .6" (typical) extrusion speed - 9.8" per second advance piercer speed - 10.8" per second return piercer speed - 6.5" opening container speed - 4.7" closing container speed - 8.8" minimum billet diameter - 13.7" maximum billet diameter - 29.5" billet length - 6.8" outside diameter maximum extrusion - 33.8" container length - 107 HP container heater - 422 HP main pumps - 25 HP ceiling pumps - 20 HP saw Controls: - Control Panel - Upgraded by Oilgear, 2000 - Allen Bradley Controls, 2000 - Oilgear automation systems programmable logic control Initial Runout Table: Cooling trough Runout table Tube Saw: - 14" blade - Runout table - Scrap dump section - Hold bins w/ crane transfer - Tube holding bin Hydraulic System: (including but not limited to ...) - 7 Rex Roth Pumps, 315 KW, 50 cycle, 500 volts, 1475 RPM - 7 Asea pumps - 140 hp motor, skid mounted - 2 Asea pumps - 40 hp P motor - 2 Asea pumps - 15 hp motor - 1 Pump, hydraulic fluid, w/ (2) 30 hp motors - 1 x air compressor (2004 Husky Pro Model VT631402AJ)(Reciprocating type, 7-HP motor, 60-gallon capacity, 135-PSI, vertical tank mounted w/ 2000 Hal-Tank fabricators model CVBT200S air receiving tank, approximately 200-gallon capacity, vertical type, skid mounted, assorted pumps, centrifugal type) ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER

Specifications

ManufacturerWEAN-UNITED
ModelCopper Extrusion Press
Year1981
ConditionUsed
Stock NumberEX-489
