Hertwich Aluminum Extrusion Log Sawing System: EX-475

Hertwich Aluminum Extrusion Log Sawing System: EX-475

orCall +1 (336) 597-2370

Description

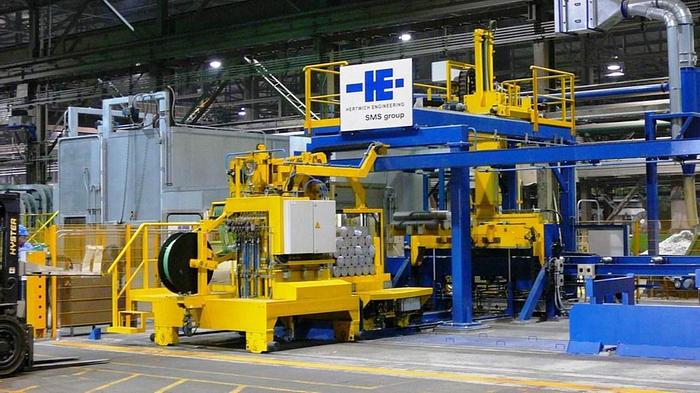

Used Hertwich Aluminum Extrusion Log Sawing System: EX-475

(Located in a Vertical DC Log Casting plant) Manufacture:

  • Hertwich
  • Commissioned new in April 2008
  • Decommissioned 2016


Condition:

  • One owner, very little use
  • Installed on plant foundation, not under power
  • Installed footprint = 156ft x 65ft (50m x 20m)


Design Capacity

  • 220-270 million lbs/yr (122,000 mtons/yr)
  • Billet Diameter = 5.0 - 15.98" (127 - 406mm)
  • Max Length: 310" (7876 mm) - Short-cut Billet: 15 - 78.5" (381 - 1994 mm) - Long-cut Billet: 118 - 288" (2997 - 7315 mm)


Current Owner only ran 6-12" Billet diameters but commissioning trials proved 16" diam work well


Equipment Entry Tables to Feed Saw (2): - 2 x laydown tables - 2 x transfer cars - Length - 14m / 46ft Log Inspection Roller Table - Inspection: Ultrasonic station for linear testing (UT) Saw: - Automatic system - Needle marker stamping - CKS 90/1260/405 saw - Long length gauge - Short length gauge - Scrap manipulator - Scrap shuttle cars - Swarf exhaust system - Swarf cyclone separator - Long scrap exit roller table - Saw blade crane - Noise absorbing enclosure over saw and operators cabin - Automatic Billet Stacker - Automatic Plastic Bander (Signode) - Scale System - Guards, Fences, Safety Devices - Documentation: Complete Sold "as is, where is" EXW on foundation, USA.

Specifications

ManufacturerHERTWICH
ModelAluminum Extrusion Log Saw
Year2008
ConditionUsed
Stock NumberEX-475
