3000 ton Loewy Aluminium Extrusion Line: EX-479

Fair Condition Used 3000 ton Loewy Aluminium Extrusion Line: EX-479

Manufacture:
- Loewy

History:
- 1975 - New
- 2008 - Moved to a new location
- 2008 - New electrics/controls
- 2014 - Tables overhauled
- 2016 - Main pump overhauled
- 2017 - Decommissioned and dismantled

Billet Size:
- 9" diam x 29.5" length
- 228.6 mm diam x 750 mm length

EQUIPMENT:
- Billet Heater: 3-zone Induction type / 4160 V main voltage / 9" x 1500 mm / 3 spare coils

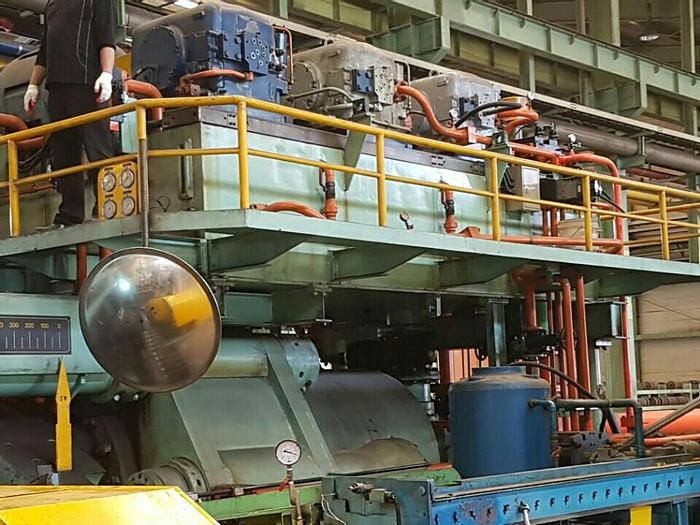

- Press: 4-Column Horizontal Hydraulic / 2 spare dummy blocks / 1 spare stem / 1 spare container / 2800 mton main ram power / 60 kW container heater / 12,000 liter oil tank / Single die slide / 460 mm diam die stack max

- Water Quench: Deep quench tank + spray, 700 mm wide x 3000 mm long

- Runout Table: "Free" roller type, 600 mm x 915 mm x 15,000 mm

- Double Puller: 25 hp motor on puller 1 / 25 hp motor on puller 2

- Flying Hot Saw: 750 mm blade diam, 7.5 hp motor

- Transfer Table: Conveyor belt type, 1425 mm x 895 mm x 37,200 mm

- Cooling Table: Conveyor belt type, 2955 mm x 855 mm x 38,400 mm

- Stretcher: 300 mm jaw opening, ___? tonnage

- Storage Table: Conveyor belt type, 2010 mm x 865 mm x 38,400 mm

- Finish Saw Charge Table: Chain driven, 900 mm x 885 mm x 39,600 mm

- Finish Saw: 650 mm diam blades, 7.5 hp motor

- Inspection Station: "Free" roll + conveyor belt, 2100 mm x 14,300 mm

Sold "as is, where is" EXW dismantled.

---------- MORE DETAILED INFO ----------

HYDRAULIC CYLINDER:
Main Ram: 1219 x 1675
Side Cylinder: 310 x 203 x 1675
Container Cylinder: 280 x 140 x 450
Shear Cylinder: 228 x 165 x 1000
Die Slider Cylinder: 140 x 80 x 1900

HYDRAULIC CYLINDER POWER:
a. Main Ram:
- Area: 11,670 cm sq.
- Pressure: 240 kgf/cm sq.
- Power: 2800 Ton

b. Side Cylinder:
- Bore: 754.5 cm sq. x 2 = 1509 cm sq.
- Rod: 323.5 cm sq. x 2 = 647 cm sq.
- Advance: Area: 1509 cm sq.
- Pressure: 240 kgf/cm sq.
- Power: 362 Ton
- Return: Area: 862 cm sq.
- Pressure: 240 kgf/cm sq.
- Power: 207 Ton

c. Container Cylinder:
- Bore: 615.5 cm sq. x 2 = 1231 cm sq.
- Rod: 154 cm sq. x 2 = 308 cm sq.
- Open: Area: 1231 cm sq.
- Pressure: 240 kgf/cm sq.
- Power: 295 Ton
- Close: Area: 923 cm sq.
- Pressure: 240 kgf/cm sq.
- Power: 221 Ton

d. Sealing: Area:
- Bore: 923 cm/sq.
- Pressure: 210 kgf/cm sq.
- Power: 193 Ton

e. Shear Cylinder:
- Bore: 408 cm sq.
- Rod: 214 cm sq.
- Down: Area: 408 cm sq.
- Pressure: 240 kgf/cm sq.
- Power: 98 Ton
- Lifting: Area: 194 cm sq.
- Pressure: 240 kgf/cm sq.
- Power: 46 Ton

DIE - STACK:
Diameter: 460 x 460 mm
OIL TANK SIZE: 12,000 Liters
MOTORS: 250 HP (1 Set)
200 HP (3 Set)
150 HP (1 Set)
75 HP (1 Set)
20 HP (1 Set)
7-1/2 HP (1 Set)
CONTAINER HEATERS: 60 KW (1 Set)

Overall Dimensions: 8,250 W x 11,500 L x 5,150 High

BILLET INDUCTION HEATER:
Type: Induction
Size: 9" x 1500 mm
Transformer Section: 3 Zone
Main Voltage: 460 V

PULLER:
Main Voltage: 440 V 60 Hz
Type: Double Puller
P1 Motor: 19 Kw DC, 25 HP
P2 Motor: 19 Kw DC, 25 HP

WATER QUENCHING DEVICE:
Type: Water Quenching
Deep Quenching & Spray Quenching
Size: 700 x 3000
Roller Pitch: 550 mm
Roller Size: 110 diam x 420 mm

MOVABLE HOT SAW:
Saw Blade: 750 diam x 110 - 120 Tooth
Saw Cutting Size: 250 mm
Saw Drive Motor: 5.5 KW 7.5 HP

RUN-OUT TABLE:
Type: Free Roller
Table Size: 600 x 915 x 15,000
Roller Pitch: 500 mm
Roller Size: 110 x 450 mm

TRANSFER CONVEYOR:
Type: Conveyor Belt
Table Size: 1425 x 895 x 37,200
Belt Pitch: 1,200 mm
Belt Size: 100 x 10T

COOLING TABLE:
Type: Conveyor Belt
Table Size: 2955 x 855 x 38,400
Belt Pitch: 1,200 mm
Belt Size: 100 x 10T

STRETCHER:
Type: Vertical Type
Jaw Dimension: 300 mm

STORAGE TABLE:
Type: Conveyor Belt
Table Size: 2010 x 865 x 38,400
Belt Pitch: 1,200 mm
Belt Size: 100 x 10T

SAW CHARGE TABLE:
Type: Chain Drive Type
Table Size: 900 x 885 x 39,600
Roller Pitch: 600 mm
Roller Size: 110 x 10T x 790 mm

FINAL CUTTING SAW:
Saw Blade: 650 x 80~100 Tooth
Saw Cutting Size: 650 mm
Saw Drive Motor: 5.5 kW 7.5 HP

INSPECTION TABLE:
Type: Free Roller, Conveyor Belt
Size: 2,100 x 14,300 mm
Roller Pitch: 300 mm
Roller Size: 110 x 800 mm
Belt Pitch: 1,300 mm
Belt Size: 75 x 10T

COOLING FAN: Quantity of 101

SPARE PARTS:
Dummy: 2 EA
Stem: 1 EA
Container: 1 EA
Billet Induction Coil: 8" x 3 EA
