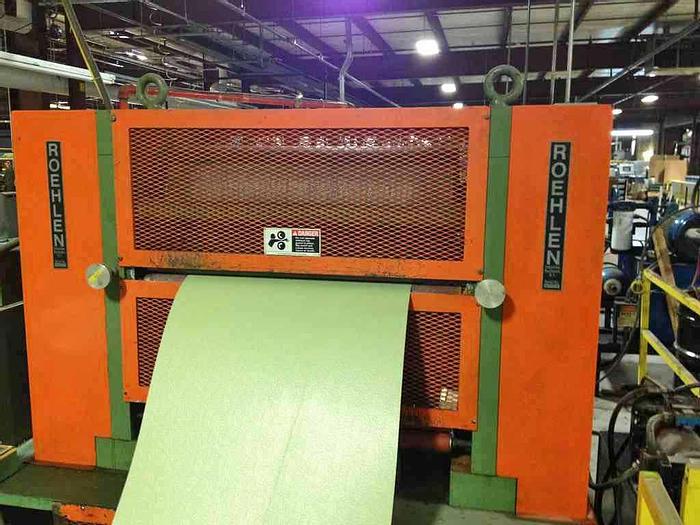

32" Roehlen Embossing Stand: EM-076

32" Roehlen Embossing Stand: EM-076

orCall +1 (336) 597-2370

Description

32" Roehlen Embossing Stand: EM-076 / 30 ton embosser with one set of stucco rolls at 15" diam x 34" face Manufacture: - Roehlen H-2213 Capacity: - 30 US short tons (Estimated) Line Speed: - 130 - 170 fpm / 39 - 52 mpm Rolls: - Diameter = 15" / 381 mm - Face = 34" / 863 mm - Pattern = Stucco - Quantity = One match set (2 rolls) - Weight of Roll Assembly = 2,500 Lbs. / 1134 kg Embossing Stand: - Entry and Exit Pass Line Rolls - Pass Thru Rolls below the bottom roll. - Complete Control System with Siemens Simoreg SCR Drive - 20 HP DC Motor, 1750/2300 RPM - In-Line Reducer w/52.11:1 Ratio - Lynair Hydraulic Cylinders: 5" Bore x 0.625" Stroke - Chain Drive to Top Embosser Roll - Pass Line Height: 48" / 1219 mm - Overall Dimensions: 94" L x 44" W x 75" High x 10,000 Lbs. - Includes Hydraulic Power Unit

Specifications

ManufacturerROEHLEN
ModelEmbossing Stand
ConditionUsed
Serial NumberH-2213
Stock NumberEM-076
