1550 mm SpaTech Cut-to-Length Line: CTL-145
1550 mm SpaTech Cut-to-Length Line: CTL-145
Description

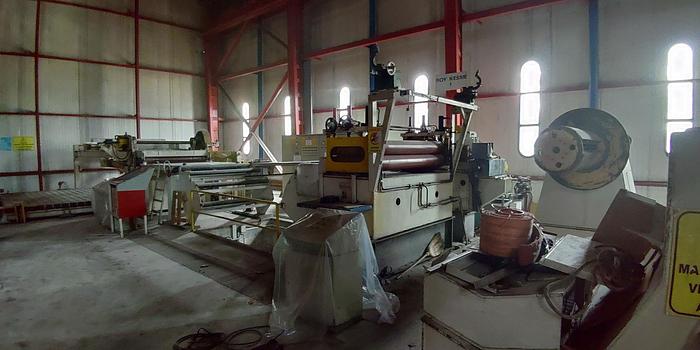

Used 1500 mm CTL line for aluminum and steel / installed / very good shape Manufacture - SpaTech (UK) - new 2007 Strip Width: - 1500 mm max / 59" - 300 mm min / 12" Strip Thickness: - Aluminum = 0.55 - 2.00 mm / .022 - .078" - Steel = 0.35 - 1.35 mm / .014 - .053" Sheet Length: - 400-4000 mm / 15.7" - 157" Entry Coil Size - ID = 508 mm / 20" - OD = 1600 mm / 63" max - Weight = 10,000 kg / 22,046 lbs max Stack Size: - Height = 750 mm / 30" including pallet - Weight = 5000 kg / 11,023 lbs max Material: - Coated steel and aluminum Yield Strengths: - Aluminum = 120 - 250 N/mm2 - Steel = 250 - 340 N/mm2 Shear Rating: - 60 strokes per minute max Line Speed: - 0-60 mpm at leveler - 0-90 mpm at roll feed Cuts Per Minute: - 15 (4.0 m sheet length at 60 mpm) - 60 (0.4 m sheet length at 24 mpm) Length Tolerances: - 0-2000 mm sheet length = +/- 0.3 mm - 2000-4000 mm sheet length = +/- 0.4 mm Diagonal Tolerances: - 0-2000 mm sheet length = +/- 0.6 mm - 2000-4000 mm sheet length = +/- 0.8 mm Electrics: - 380 V / 3 ph / 50 Hz
Specifications
| Manufacturer | SPATECH |
| Model | Cut-to-Length Line |
| Year | 2007 |
| Condition | Used |
| Stock Number | CTL-145 |
| Type | Cut-to-Length, Cut-to-Length Lines |
| Status | For Sale |
| Sheet Length | - 400-4000 mm / 15.7" - 157" |
| Material | - Coated steel and aluminum |
| Shear Rating | - 60 strokes per minute max |
| Electrics | - 380 V / 3 ph / 50 Hz |
