2000 mm x 12 mm Cut-to-Length Line: CTL-136

2000 mm x 12 mm Cut-to-Length Line: CTL-136

orCall +1 (336) 597-2370

Description

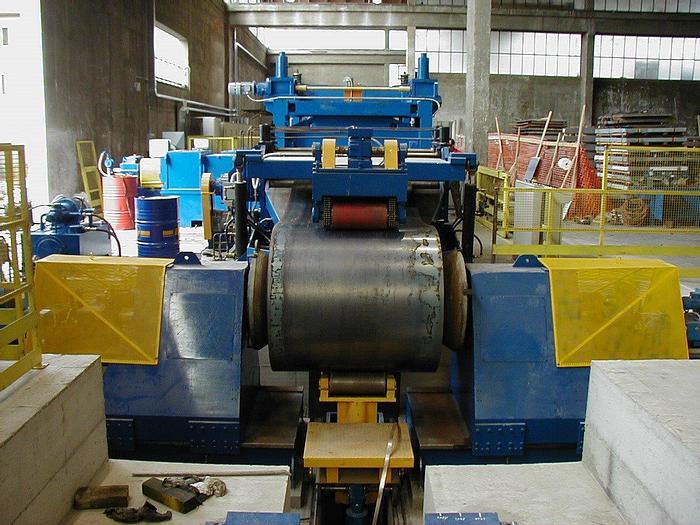

2 meter wide heavy gauge CTL line for sale. Well equipped, in excellent condition. Manufacture: - Miscellaneous - see below Strip Width: - 500 - 2050 mm (19.7 - 80.7") Strip Thickness - Nominal: 1.5 - 10.0 mm (.060 - .394") on 400 N/mm2 material - Maximum: 12 mm at 1500 mm strip width on 300 N/mm2 material Line Speed: - 0 - 25 mpm (0 - 82 fpm) Entry Coil Size: - ID: 508-610-760 mm (20-24-30") - OD: 1800 mm max (70.9") - Wt - 25 mtons (55,000 lbs) Cut Sheet Length: - 1000 - 10,000 mm (39.4 - 394") Hand of Line: - Left to right - Coil Car: Charges from back side - Double Mandrel Uncoiler: DC motor on each mandrel, Dynamic brake=constant tension, Oil station - Entry Section: Coil Opener + Pinch roll with AC motor + Snubber roll + Straightener (3-roll, DC motor) - Leveler: 4-Hi Precision unit by Helios, new 1997 (rebuild 2003) 17 rolls / 75 mm diam work rolls / 9 + 9 backup roll sets / movement by hydraulic jacks - Measuring Wheel: With encoder - FLYING Shear: Servo electronic movement / Drive by Lenze / +/- 1mm tolerance (on 3m), Pinch roll for last sheet - Exit Pinch Roll - DC motor - Stacker - Gravity type / Side and front "kickers" / 10,000 mm length - Packing Table - Roller type table with scale / 10,000 mm length - Electrics (new 2003) - Three operator control desks, Siemens S7 315 PLC - Hydraulics - 2 power packs - Status - Decommissioned early 2018 while in 100% working order Sold "as is, where is" EXW on foundation, not under power. from Phipps Co. equipment suppliers USA

Specifications

ManufacturerMultiple Manufacturer
ModelCut-to-Length Line
ConditionUsed
Stock NumberCTL-136
TypeCut-to-Length, Cut-to-Length Lines
StatusFor Sale
Manufacture- Miscellaneous - see below
Strip Width- 500 - 2050 mm (19.7 - 80.7")
Line Speed- 0 - 25 mpm (0 - 82 fpm)
Cut Sheet Length- 1000 - 10,000 mm (39.4 - 394")
Hand of Line- Left to right
- Coil CarCharges from back side
- Double Mandrel UncoilerDC motor on each mandrel, Dynamic brake=constant tension, Oil station
- Entry SectionCoil Opener + Pinch roll with AC motor + Snubber roll + Straightener (3-roll, DC motor)
- Measuring WheelWith encoder
- FLYING ShearServo electronic movement / Drive by Lenze / +/- 1mm tolerance (on 3m), Pinch roll for last sheet
