62" New and Refurbished Coil Coating Line: CC-175 (2018)

2018 62" New and Refurbished Coil Coating Line: CC-175

This offering is a combination of BRAND NEW coil coating line equipment ... and ... a used coil coating line that has now been refurbished.

The new equipment was engineered and built in 2017-2018 by various top-tier manufacturers (please see the list below). The equipment is still in crates in most cases.

The used equipment (our reference CC-156) was a coil coating line installation in Korea that was purchased by a company in Turkey. The Turks moved the line to Turkey (this is when many components were scrapped). The Turks never installed the line and a customer of Phipps Company bought and moved the line to the United States to make the backbone of this 62" offering. This used equipment was refurbished in 2017-2018 has not been installed.

Phipps Company's customer worked diligently to make this 62" line a reality. But their core business is a niche, narrow coil market. In the end, they decided to abandon the project and sell the equipment.

This is a unique opportunity to buy $11 million worth of equipment at a huge discount!

Please see the details below and contact us for more detail if interested.

An inspection is possible at anytime and the equipment builders are available to discuss current details and engineering plus the possible application of the equipment to your project.

Strip Width:
- 62" (1575 mm)

Strip Thickness:
- .010 - .050" (0.25 - 1.27 mm)

Material:
- aluminum, mild steel, galvanized, etc.

Line Speed:
- 300 fpm (91.5 mpm)

Coil Size (for the New Globus Coilers)
- ID: 16 & 20" (406 & 508 mm)
- OD: 72" (1829 mm)
- Weight: 50,000 lbs (27,272 kg)

Uncoilers (6)
- #1&2 = new Globus as per above
- #3&4 = B&K = 62" mandrel face (1575mm) x 24,000lbs (11 mtons) weight capacity
- #5&6 = Hypec = 69" mandrel face (1752mm) x 33,000lbs (15 mtons) weight cap.

Recoilers (3)
- #1 = new Globus as per above
- #2 = B&K = 62" mandrel face (1575mm) x 24,000lbs (11 mtons) weight capacity
- #3 = Hypec = 69" mandrel face (1752mm) x 33,000lbs (15 mtons) weight capacity

Maxcess Strip Guidance System
- 8 units: 4 complete, 4 with some parts missing

Electrics:
- 480-500V / 3ph / 60Hz

Equipment Items:
1. Entry Coil Car #1 with Coil Saddle - New by Globus (Italy)
2. Uncoiler 1 - New by Globus
3. Entry Coil Car #2 with Coil Saddle - New by Globus
4. Uncoiler 2 - New by Globus
5. Pinch roll 1 with feed table - New by Globus
6. Pinch roll 2 with feed table - New by Globus
7. Entry Shear - Used - CC-156 refurbished
8. Strip Joiner - Used - Behlen type - CC-156 refurbished
9. Deburring Unit - New by Globus
10. Bridle #1 - Used - CC-156 refurbished
11. Entry Accumulator Tower - New - Engineering only, structure not built yet
12. Entry Accumulator rolls & bearings - New - by American Roller / B&D
13. Steering Roll #1 Frame - Used - CC-156 refurbished
14. Steering Roll #1 Controls - New by Maxcess (was North American)
15. Steering Roll #1 Rolls - Used - CC-156 refurbished
16. Bridle #2 - Used - CC-156 refurbished
17. Pretreatment Wash Sections - New by Globus
18. Pretreatment Rinse Sections - New by Globus
19. Bridle #3 - New by Globus (functioning as tension leveler entry bridle)
20. Tension Leveler - New by Globus - Actual Flex-Roll Section
21. Bridle #4 - New by Globus (functioning as tension leveler exit bridle)
22. Steering Roll #2 Frame - Used
23. Steering Roll #2 Controls - New by Maxcess
24. Steering Roll #2 Rolls - Used - CC-156 refurbished
25. Abrader/Brush - New by EFI
26. Bridle #5 - Used - CC-156 refurbished
27. Steering Roll #3 Frame - Used
28. Steering Roll #3 Controls - New by Maxcess
29. Steering Roll #3 Rolls - Used - CC-156 refurbished
30. Chem-Coater - Used - CC-156 refurbished (a used Globus unit, new in 2013)
- 72" roll face (1829mm)
31. Chem-Coater Oven - New by EPCON (Storage at Houston, TX)
32. Steering Roll #4 Frame - Used
33. Steering Roll #4 Controls - New by Maxcess
34. Steering Roll #4 Rolls - Used - CC-156 refurbished

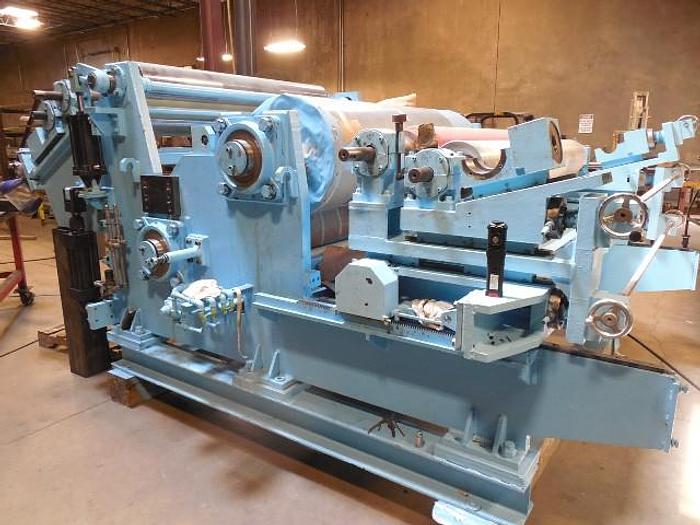

35. Primer Coater - Used - CC-156 refurbished, 3-roll type, new 2004, with load cells
- 69" roll face (1752mm)
36. Primer Oven - New by EPCON
37. Primer Quench - Used - CC-156 refurbished
38. Steering Roll #5 Frame - Used
39. Steering Roll #5 Controls - New by Maxcess
40. Steering Roll #5 Rolls - Used - CC-156 refurbished
41. Bridle #6 - Used - CC-156 refurbished
42. Steering Roll #6 Frame - Used
43. Steering Roll #6 Rolls - Used - CC-156 refurbished
44. Finish Coater - Used - CC-156 refurbished, 3-roll type, new 2004, with load cells
- 69" roll face (1752mm)
45. Finish Oven - New by EPCON
46. Finish Quench - Used - CC-156 refurbished
47. Steering Roll #7 Controls - New by Maxcess
48. Bridle #7 - Used - CC-156 refurbished
49. Exit Accumulator Tower - New - Engineering only, structure not built yet
50. Exit Tower rolls & bearings - New - by American Roller / B&D
51. Steering Roll #8 Controls - New by Maxcess
52. Exit Shear - Used - CC-156 refurbished
53. Exit Deflector Roll - Used - CC-156 refurbished
54. Recoiler with Coil Saddle - New by Globus
55. Belt Wrapper - New by Globus
56. Core loader - New by Globus
57. Exit Coil Car - New by Globus
58. All the GLOBUS equipment includes new motors
59. The EPCON ovens are complete new with fans, electrical panels and burners
60. The CC-156 equipment comes with the original motors

Spare Used CC-156 refurbished equipment:
61. Entry Coil Car 1
62. Uncoiler 1 mandrel type with feed-up rolls
63. Entry Coil Car 2
64. Uncoiler 2 mandrel type with feed-up rolls
65. Recoiler mandrel type
66. Belt Wrapper
CC-156 motors = AC, 400V, 50Hz

ORIGINAL CC-156 USED LINE SPECIFICATION:
- Manufacture = Hypec (Korea) + Globus chem coater + Adphos near infra-red ovens scrapped
- Strip Thickness = 0.3-1.2 mm (.012" - .048")
- Strip Width = 700-1600 mm (27.6" - 63")
- Coil Size = ID of 508 mm (20") / OD of 1600 mm max (63") / 12 mtons max (26,448 lbs)
- Line Configuration = left to right, two coats.

Sold "as is, where is" EXW warehouse. USA.
