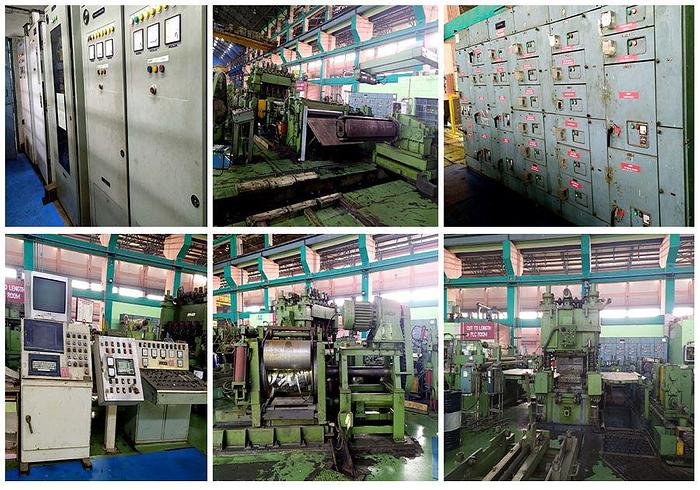

1700mm Aluminum Cut-to-Length Line: CTL-146

Contact us for price

orCall 1-336-597-2370

Description

Manufacture:

  • Blue Star Ltd / new 1992
  • Decommissioned May 2019, Dismantled May 2020

Material:

  • Aluminum and its alloys

Strip Width

  • 600 - 1700 mm (23.6 - 66.9")

Strip Thickness

  • 0.35 - 4.0 mm (.014 - .157")

Line Speed

  • 60 mpm max (196.8 fpm)

Hand of Line - Right to Left (as viewed from operator’s side)

Strengths

  • Yield Strength: 30 kg/mm2 max
  • Tensile Strength: 35 kg/mm2 max
  • Shear Strength: 25 kg/mm2 max

Coil Size

  • ID - 600 mm (23.6")
  • OD - 1825 mm (71.8")
  • Weight - 11,600 kg with spool (25,566 lbs)
  • Spool size: 595 mm ID x 660 mm OD x 1950 mm width x 975 kg

Cut Sheet

  • Length - 600 - 4000 mm max (23.6 - 157.5")
  • Stack weight - 3000 kg max (6,612 lbs)
  • Stack height - 600 mm max including pallet (23.6")
  • Scrap sheet length - 2000 mm max (78.7")
  • Cut length tolerances - +/- 1.0 mm (.039")


Specifications

ManufacturerBlue Star Ltd.
Year1992
ConditionUsed
Stock NumberCTL-146
