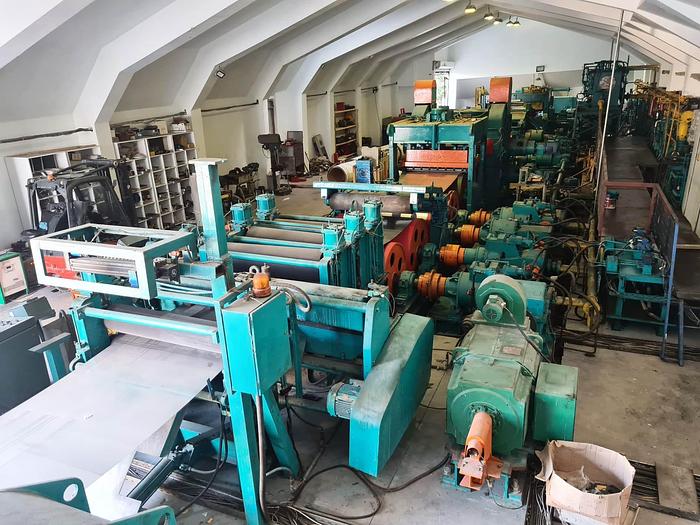

54" BWG Tension Leveling Line: TLL-195

Manufacture

• BWG
• 1975 = New
• 1999 = total rebuild (mechanical overhaul + PLC and DC electrics replaced with new)
• 2019 = refurbished again and installed at another factory

Strip Width:

• 1350 mm max

Strip Thickness:

• 0.5 - 6.0 mm

Line Speed:

• 100 mpm

Coil Size:

• ID - 453/620 mm entry / 508 mm exit
• Weight - 10 mtons /22,000 lbs.

Material:

• Steel (Cold rolled/galvanized/coated/stainless) - and - Aluminum

Elongation:

• 5% max

Equipment Uncoiler:

• Mandrel, hydraulic expansion, 100 hp DC motor

Fife Steering Unit

Pinch Roll:

• 2-roll, 20 hp DC motor

Flattener: 5-roll

Entry Crop Shear:

• mechanical type

Brush Unit

Pinch Roll: 2-roll

Entry Tension Bridle:

• 4-roll horizontal type
• 220 kW DC motor driving a mechanical differential
• 1225 mm diam x 1524 mm face rolls, Rubber coated

Rolling Mill:

• BWG, 2-Hi skinpass mill

Flex-Roll Leveler:

• BWG 6-Hi cartridge type
• Work Rolls - 45 mm diam x 1494 mm face
• Backup Rolls - 35 mm diam x 1494 mm face

Exit Tension Bridle:

• 4-roll horizontal type
• 220 kW DC motor driving a mechanical differential
• 1225 mm diam x 1524 mm face, Rubber coated

Pinch Roll

Exit Crop Shear: Mechanical type

Inspection table

Fife Steering Unit

Tension Roll:

• 2-roll, rubber coated

Recoiler:

• Mandrel type, hydraulic expansion, 55 kW DC motor
• Belt Wrapper
• Exit Coil Car

PLC: Rockwell, new in 1999

DC Drives: Reliance, new in 1999

Edge Control: Fife system Sold "as is, where is" EXW installed. from Phipps Co. equipment suppliers USA
