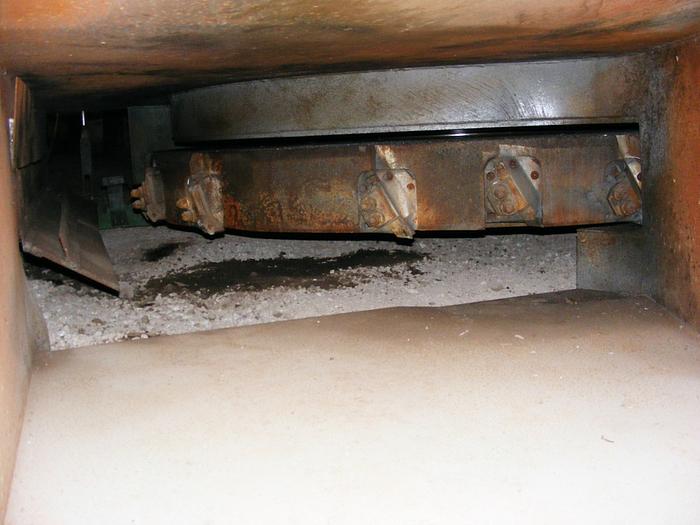

86" Ingersoll Aluminum Rolling Slab Scalper: SC-026

$1,450,000 (USD)

orCall 1-336-597-2370

Description

Manufacturer: Ingersoll / 1977 Configuration: Scalps one side at a time Includes slab rollover device Slab Thickness: 14 - 24" / 350 - 620 mm Slab Width: 31 - 86.6" / 800 - 2200 mm Slab Length: 105 - 256" / 2667 - 6500 mm Slab Weight: 35,000 lbs max / 15.9 mtons Nominal Depth of Cut: 0.6" with maximum cut of 1.75" (15 mm with maximum cut of 45 mm) Infeed & Exit Roller Tables: 256" long / 6.5 meters Roll profile = "hour glass" Slab Rollover Device: 256" max slab length, Hydraulic motor Entry Feed and Traverse Speed Rates - X-Axis Table Feed Rate: 10 - 400" per minute = 250 to 10,000 mm/min - X-axis Table Traverse Rate: 1500" per minute = 38,000 mm/min Edge Scalping: Design of this machine will allow the addition of edge scalping blades. Sold "as is, where is" EXW warehouse. from Phipps Co. equipment suppliers USA

Specifications

ManufacturerIngersoll
Year1977
ConditionUsed
Stock NumberSC-026
