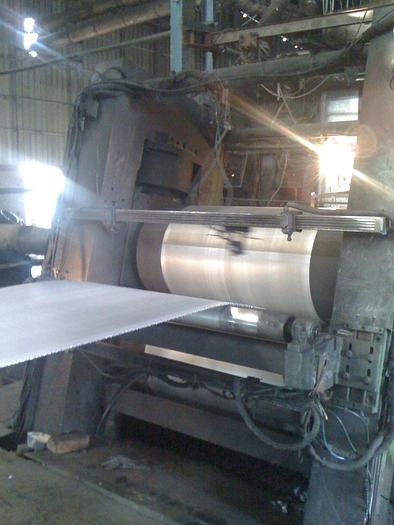

1350mm Twin-Roll Aluminum Continuous Strip Caster: MC-410

Contact us for price

orCall 1-336-597-2370

Description

Manufacture

- Castal Ltd. (Greece)


Cast Strip Width

- 1350 mm max (53.15")


Cast Strip Thickness

- Maximum: 12.0 mm (.472")

- Minimum: 4.2 mm (.165")

(4.2 mm thickness was achieved by owner)


Casting Speed

- 1050 alloy = 1.5 mton/hr achieved

- 3003 alloy = 900 kg/hr achieved


Caster Configuration

- Horizontal, 15 degree tilt


Equipment

  • Two Melting/Holding Furnaces, 12 mton tilting type
  • Scrap charge car
  • Molten Metal Level Pour System
  • Titanium-Boron Grain Refiner Rod Feeder
  • Tips - 2 sets of tip tables included / Electric tip bake-out oven / Material for 30 hard and 20 soft tips included
  • Caster Cylinders - Hydraulic tilting type Drive - Siemens DC motor, Single drive type, Flender gearboxes
  • Rolls - 2 pairs included (4 rolls) by Akers / 660 mm diam x 1450 mm face / water cooled type / Bottom shell each set = cracked / Cores = perfect condition / Chocks & bearings included
  • Electrics and Controls - Siemens PLC and SCADA system / Central control for all system, Drawings included
  • Edge Trimmer - Not installed but there is space to install a system
  • Pinch Roll Stand - Hydraulic, Siemens DC motor, Flender gearbox
  • Shear - Hydraulic traveling type / Fully automatic, Limit switch control
  • Strip Feeder - Feeds strip into recoiler
  • Recoiler - Hydraulic action, Coil push-off, Coil car
  • Other Equipment Included:
  • - Uninterruptible Power Supply by GE Spectrometer - Arun type design, 24 channels
  • - Heat Exchanger by Alfa Laval water cooling system / maintains roll skin temp at 80-85 degrees

Condition - Very good - Installed and can be dry-run during inspection - Maintenance has been diligent - Decommissioning was done with care

Sold "as is, where is" EXW on foundation. Dismantling and freight for buyer's account.

Specifications

ManufacturerCastal Ltd.
Year2007
ConditionUsed
Stock NumberMC-410
