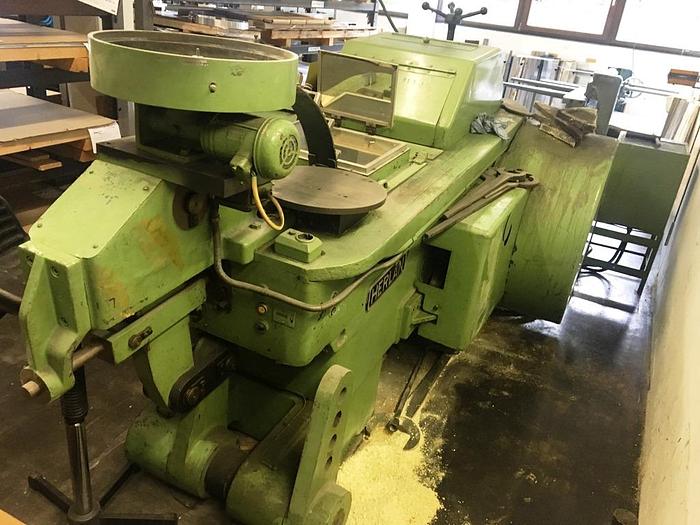

Herlan P5 Impact Extrusion Press: IEX-184

Contact us for price

orCall 1-336-597-2370

Description

Manufacture: Herlan, 1962 / Model P5

Capacity: 240 mtons

Stroke: 300 mm

Strokes per Minute: 85 max with standard tooling

Aluminum Impact Sizes:
- 38mm max diam
- 0.1mm max wall thickness
- 250mm extruded length

Zinc Impact Sizes:
- 32mm max diam
- 0.35mm max wall thickness
- 80mm extruded length

Motor: 10kW, 1420rpm, 220-380V, 50Hz

Controls: Electrics and control panel

Slug Feed: On-press slug basin included

Slug feed slide: included

Dimensions: 11' 8" L x 5' 7" W x 5' 7" H (3550mm L x 1700mm W x 1700mm H) x 7000 kg / 15,400 lbs
Sold "as is, where is" EXW warehouse floor / from Phipps Co. equipment suppliers USA

Specifications

ManufacturerHerlan
ModelP5
Year1962
ConditionUsed
Stock NumberIEX-184
