63" Cameron Aluminum Foil Slitting Line: FS-071

Contact us for price

orCall 1-336-597-2370

Description

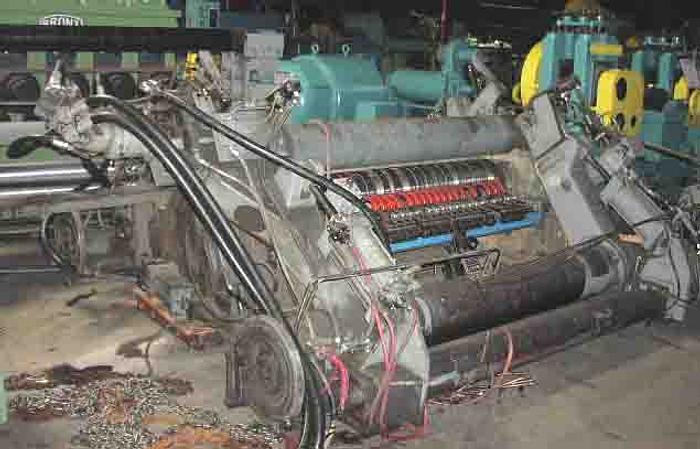

Manufacture: - Cameron "Type 648" - Model: 648-901.A-SMP42 - Type: Heavy-duty differential duplex slitter-rewinder for kraft paper and aluminum foil Line Speed: - 2000 fpm max (610 mpm) Material Thickness: - .0005 - .030" (0.0127-0.762 mm) Foil Material Width: - Max: 63" (1600 mm) - Min: 4-21/32" (118 mm) Paper Material Width: - 35 lb Kromkote and heat seal papers (24x36/500) - To 60 lb Kraft paper (24x36/500) Slit Width: - 4.856" min (118 mm) - 20 shear type slitting units Entry Coil Size: - OD - 42" max (1067 mm) Exit Coil Size: - ID - 3.031" (on cores)(77 mm) - OD - 42" max (1067 mm) Hand of Line: Left to right Equipment Uncoiler Slitter: - Shear type cutting - 30 hp hydraulic drive Knife System: - Laser type Dienes Modul II Dual Recoiler: - 2 x 3.031" diam (77mm) differential rewind shafts - For use w/steel or fiber cores - Each with 10 driving collar sample cores. Sold "as is, where is" off foundation. from Phipps Co. equipment suppliers USA

Specifications

ManufacturerCameron Machine
Model648
ConditionUsed
Stock NumberFS-071
