1400mm Coil Coating Line: CC-171

Contact us for price

orCall 1-336-597-2370

Description

Manufacture
- Original installation = Waldron, 1965
- All components have been replaced over the years
- THE LINE IS FULLY COMPLIANT TO MODERN STANDARDS

Strip Width:
- 1400mm max (55")

Strip Thickness (aluminum):
- 0.3 - 1.5 mm (.012 - .060")

Coil Size
- Uncoiler 1: 610mm ID x 23 mtons (24" x 50,000lbs)
- Uncoiler 2: 508 & 610mm x 10 mtons (20 & 24" x 22,000lbs)
- Recoiler: 508 & 610mm x 10 mtons (20 & 24" x 22,000lbs)

Line Speed:
- 45 mpm max (147 fpm)

Design: One level, Single coat, Left-to-right hand of line

Annual Capacity:
- 35-40,000 mtons (aluminum)

Equipment

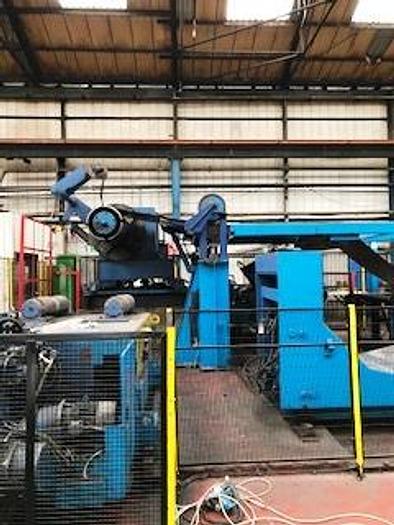

- Uncoiler 1: Mandrel type, coil car, pinch roll, peeler
- Carry-over Table
- Uncoiler 2: Mandrel type, coil car, pinch roll
- Entry Shear
- HerrVoss Strip Joiner: desinged like a Behlen, spare tool set like new
- Deburr Roll Unit
- Bridle 1
- Entry Accumulator
- Bridle 2
- Cleaning section
- Squeegee Roll Unit
- Turn Roll Unit
- Bridle 3
- Coater: by REK-AM (German). Built to BWG specifications.
- Oven: gas-fired, with quench section
- Thermal Oxidizer Fully compliant
- Embosser (paint texturizer): by Rimara SAS / roll set 1 = leather grain / roll set 2 = unused, leather grain
- Turn Roll Unit
- Bridle 4
- Exit Accumulator
- Bridle 5
- Turn Roll Unit
- Exit Shear
- Exit Threading Table
- Recoiler : Mandrel type, with belt wrapper, pit mounted coil car
- Utilities: Complete electrics, controls, hydraulics, water coolers, liquid storage tanks, etc.
- Spares: Strip steering units, Line rolls, etc.
- GFG Waxer available that can serve as a good prime coater if one wants to change this line to a 2-coat system

Sold "as is, where is" EXW on foundation, ceased operation April 2018.
Other consumables and equipment possibly available.

Specifications

ConditionUsed
Stock NumberCC-171
