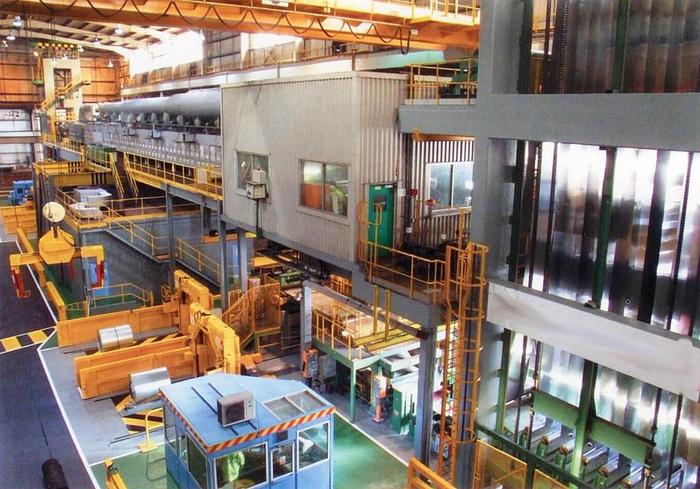

64" Modernized Coil Coating Line: CC-146

Contact us for price

orCall 1-336-597-2370

Description

Manufacturer:
- Salem, Herr-Voss, BWG
- New 1987
- Extensive modification 2008

Line Speed:
- Aluminum: 200mpm max / 656fpm
- Steel: 120mpm / 400fpm

Material Thickness:
- 0.2 - 0.65mm / .0079 - .026" Aluminum and steel

Strip Width:
- 600 - 1630mm / 23.6 - 64"
- 1550mm widest strip ever run
- 1500mm max best for steering

Coil Size:
- ID - 406mm / 16"
- OD - 1900mm max / 74.8"
- Weight - 11mton max / 24,000lb

Coating Capacity:
- Single coat system
- Max yield - 420/410 N/mm2
- 2nd coater and oven can easily be added to coat kynar, polyurethane, polyester, etc.

Configuration:
- Right to left, 2 levels

Footprint: 86m L x 13.5m W x 17m H / 282' L x 44' W x 56' H

Equipment
- Uncoilers (2)

- Strip Joiner

- Entry Accumulator: 250mm diam rolls / 9.8" / 234 m of strip storage

- Vertical Clean & Pretreat System

- Roll Coater

- Oven:
36m long / 118ft
Flotation type = hi-velocity, forced air
Air control = 12 individual sections
Temp control = 6 zones
One (1) cooling section

- Exit Accumulator:
250mm diam rolls / 9.8" diam
234 meters of strip storage

- Edge Guide System

- Recoilers: Two (2), with coil transfer racks

- Oxidizer: 760deg C + catalytic converter

- Paint Bulk Storage Tanks:
Six (6) / Stainless steel / 25,000 liters

- Waste Solvent / Paint Tanks:
Three (3) / 15,000 liters

Sold "as is" EXW at seller's foundation.
Dismantling and freight for the buyer's account.

Specifications

ManufacturerBWG
ConditionUsed
Stock NumberCC-146
