1280mm Coil Coating Line: CC-172

Contact us for price

orCall 1-336-597-2370

Description

Manufacture:
- Italian made / new 2014

Design: Continuous, aluminum, coil-to-coil
- Coatings: Colors + designs (wood grain)
- Paints: Epoxy, polyester, PVDF, etc
- Peak Metal Temp (PMT): 232-260 deg C / 450-500 deg F
- Installed Electrical Power: 130 kW / 175 hp
- Installed Thermal Power: 680,000 Kcal/hr

Reference Strip:
- 1250 mm x 0.30 mm x 30 mpm (49.2" x .012" x 100 fpm) / 1823 kg/hr production

Strip Width: 600 - 1280 mm / 23.6 - 50.4"

Strip Thickness: 0.20 - 0.70 mm / .0078 - .0276"

Line Speed: 15 - 40 mpm / 49.2 - 131.2 fpm

Coil Size:
- ID - 500 mm / 19.7"
- OD - 1500 mm / 59"
- Weight - 9 mtons / 19,836 lbs

Equipment

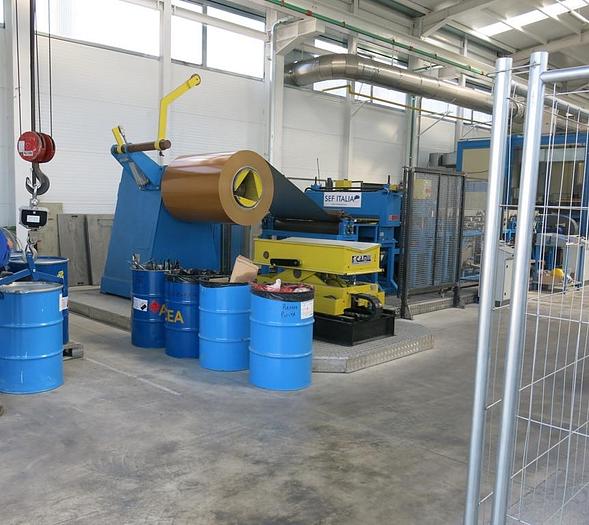

- Entry Coil Car
- Uncoiler
- Entry Shear: Guillotine type
- Strip Joiner
- Pinch Roll
- Cleaning tunnel
- Chem Coater
- Infra-red Oven
- Strip Steering Roll (Centering)
- 3-Roll Coaters (2): With inverter, For decorative patterns
- 2-Roll Coater (1): With inverter, With one metering blade
- Coater Room: Air conditioned, 4 paint pumps
- Oven -3 zones / Natural gas-fired
- Thermal Oxidizer
- Quench: 1 air cooler, 2 water cooling rolls
- Cooling tower & chiller
- Bridle Sections (2)
- Coil Inspection Zone
- Pinch Rolls 2 stands
- Exit Shear Guillotine type
- Recoiler With strip centering
- Exit Coil Car
- Utilities Complete electrics, controls, hydraulics, pneumatics, etc.
- Some Spares 1 paint pump / 3 coater rolls (rubber covered)

- Documentation Drawings, schematics, manuals

Sold "as is" EXW on foundation, under power, operational (as of May 2018)

Specifications

Year2014
ConditionUsed
Stock NumberCC-172
